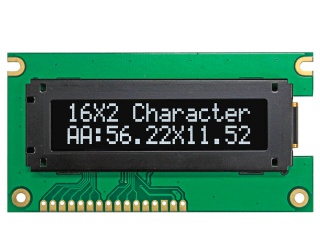

| PartZenbakia | WEO001602GW |
| Marka | Winstar |
| Tamaina | 2.3 |
| Aplikazio | Instruments & Me |
| Ebazpena | 5×8 |
| Konposizioa | OLED , PM-OLED |
| Distira | |
| CR | 2000:1 |
| Koloreak | Mono(White) |
| Atzeko argia | self |
| Interfazea | 8-bit |
| fabrikatzailea | Winstar |
| ereduaren izena | WEO001602GW |
| pantailaren tamaina | 2.3 inch |
| pantaila mota | OLED , PM-OLED |
| kararen zenbakia | 16 characters × 2 lines 7PPI |
| char formatua | 5×8 dots |
| Char-pasa (mm) | 3.55×5.95 (H×V) |
| kararen tamaina (mm) | 2.97×5.57 (H×V) |
| eremu aktiboa (mm) | 56.22 × 11.52 (H×V) |
| eskema (mm) | 79 × 44 × 9.67 (H×V×D) |
| bezela eremua (mm) | 58.22 × 13.52 (H×V) |
| tratamendua | - |
| luminantzia | - |
| kontraste-erlazioa | 2000 : 1 (Typ.) (TM) |
| ikuspegi angelua | 88/88/88/88 |
| erantzuna | 0.01 (Typ.) ms |
| ikuspegi ona | Symmetry |
| lan egiteko modua | - |
| kolore-sakonera | Mono(White) |
| atzeko argia | self |
| masa | - |
| erabiltzen | Instruments & Meters |
| freskatze tasa | - |
| pantaila taktila | Without |
| gidariaren ic zerrenda | Built-in COG SSD1311M1Z |
| seinale mota | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 16 pins Pad |
| tentsio-hornidura | 3.3/5.0V (Typ.)(VDD) |
