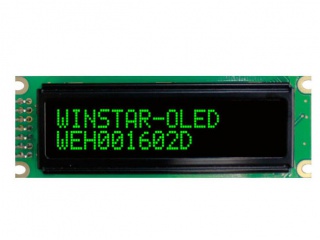

| PartZenbakia | WEH001602DG |
| Marka | Winstar |
| Tamaina | 2.3 |
| Aplikazio | Instruments & Me |
| Ebazpena | 5×8 |
| Konposizioa | PM-OLED, OLED |
| Distira | |
| CR | |
| Koloreak | Mono(Green) |
| Atzeko argia | self |
| Interfazea | 8-bit |
| marka | Winstar |
| eredua | WEH001602DG |
| diagonalaren tamaina | 2.3 inch |
| mota | PM-OLED, OLED |
| char formatua | 5×8 dots |
| letra-tamaina | 2.95×5.55 mm |
| letra-tipoa | 3.6×6.3 mm |
| eremu aktiboa | 56.95(H)×11.85(V) mm |
| eskema dim. | 85(H)×30(V) ×10(D) mm |
| bezela eremua | 66(H)×16(V) mm |
| tratamendua | - |
| ikusi norabidea | Symmetry |
| erantzun denbora | - |
| ikuspegi angelua | - |
| funtzionamendu modua | - |
| euskarria kolorea | Mono(Green) |
| argi iturria | self |
| pisua | - |
| entzat diseinatua | Instruments & Meters |
| fotograma-tasa | - |
| ukipen-panela | Without |
| d-ic xehetasuna | COB Built-in WS0010 |
| interfaze mota | 8-bit 6800/8080 parallel , 14 pins Pad |
| energia hornidura | 5.0V (Typ.) |
| AL1602B | Other | 2.3 | 16×2 |
| AMC162A | Other | 2.3 | 16×2 |
| AMC162B | Other | 2.3 | 16×2 |
| DMC-16202NY-LY-BJE-BLN | Kyocera | 2.3 | 16×2 |
| LS023B3UY01 | SHARP | 2.3 | 360×400 |
| TM023KDH60 | Tianma | 2.3 | 320×240 |
