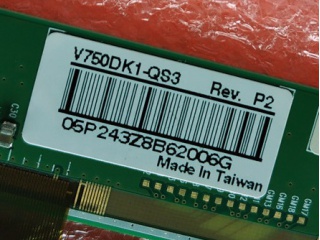

| PartZenbakia | V750DK1-QS3 Rev.P2 |
| Marka | Innolux |
| Tamaina | 75 |
| Aplikazio | TV Sets |
| Ebazpena | 3840×2160 |
| Konposizioa | a-Si TFT-LCD , CELL |
| Distira | |
| CR | 5000:1 |
| Koloreak | 1.07B |
| Atzeko argia | No |
| Interfazea | V-by-One |
| marka | Innolux |
| diagonalaren tamaina | 75 inch |
| pixel formatua | 3840(RGB)×2160 [UHD] 59PPI |
| eremu aktiboa | 1650.24(H)×928.26(V) mm |
| bezela eremua | - |
| luminantzia | 0 cd/m² |
| ikusi norabidea | Symmetry |
| ikuspegi angelua | 88/88/88/88 (Typ.)(CR≥10) |
| plakaren lodiera | 0.50+0.50 mm |
| euskarria kolorea | 1.07B 71% NTSC |
| pisua | 4.87±0.25Kgs (Typ.) |
| fotograma-tasa | 120Hz |
| d-ic xehetasuna | COF Built-in 24 source + 16 gate chips |
| interfaze mota | V-by-One 8 lane , 56 pins Connector |
| energia hornidura | 12.0V (Typ.) |
| ingurunea | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| eredua | V750DK1-QS3 Rev.P2 |
| mota | a-Si TFT-LCD , CELL |
| konfigurazioa | RGB Vertical Stripe |
| eskema dim. | 1662.24(H)×941.96(V) ×1.32(D) mm |
| tratamendua | Clear, Hard coating (3H), Reflection 1.8% (Typ.) |
| kontraste-erlazioa | 5000:1 (Typ.) (TM) |
| erantzun denbora | 6.5 (Typ.)(G to G) |
| funtzionamendu modua | Super MVA, Normally Black, Transmissive |
| transmisioa | 5.0% (Typ.)(with Polarizer) |
| argi iturria | No B/L |
| entzat diseinatua | TV Sets |
| ukipen-panela | Without |
| LTA750FF01 | Samsung | 75 | 3840×2160 |
| LTA750FJ01 | Samsung | 75 | 3840×2160 |
| LTA750HQ01 | Samsung | 75 | 1920×1080 |
| LTI750HF01 | Samsung | 75 | 1920×1080 |
| T750QVF01.0 | AUO | 75 | 3840×2160 |
| V750DK1-KS5 Rev.F8 | Innolux | 75 | 3840×2160 |
