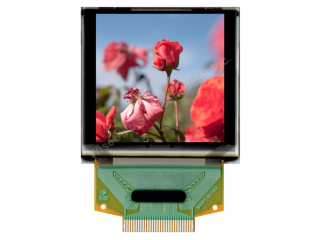

| PartZenbakia | UG-2828GDEDF15 |
| Marka | Univision |
| Tamaina | 1.5 |
| Aplikazio | Mobile Phone Handhel |
| Ebazpena | 128×128 |
| Konposizioa | PM-OLED, OLED |
| Distira | |
| CR | 2000:1 |
| Koloreak | 262K |
| Atzeko argia | self |
| Interfazea | 8-bit |
| marka | Univision |
| eredua | UG-2828GDEDF15 |
| diagonalaren tamaina | 1.5 inch |
| mota | PM-OLED, OLED |
| pixel formatua | 128(RGB)×128 121PPI |
| konfigurazioa | RGB Vertical Stripe |
| eremu aktiboa | 26.855(H)×26.864(V) mm |
| eskema dim. | 33.8(H)×34(V) ×1.7(D) mm |
| bezela eremua | 28.855(H)×28.864(V) mm |
| tratamendua | - |
| luminantzia | 90 cd/m² (Typ.) |
| kontraste-erlazioa | 2000:1 (Typ.) (TM) |
| ikusi norabidea | Symmetry |
| erantzun denbora | - |
| ikuspegi angelua | 80/80/80/80 (Min.) |
| funtzionamendu modua | - |
| euskarria kolorea | 262K |
| argi iturria | self , 20K hours |
| pisua | 3.80g (Typ.) |
| entzat diseinatua | Mobile Phone Handheld & PDA |
| fotograma-tasa | - |
| ukipen-panela | Without |
| d-ic xehetasuna | COF Built-in SSD1351 |
| interfaze mota | 8-bit 6800/8080 parallel, 3/4-wire SPI , 30 pins FPC |
| energia hornidura | 2.8/2.5/1.8/13V (Typ.)(VCI/VDD/VDDIO/VCC) |
| ingurunea | Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -40 ~ 80 °C |
