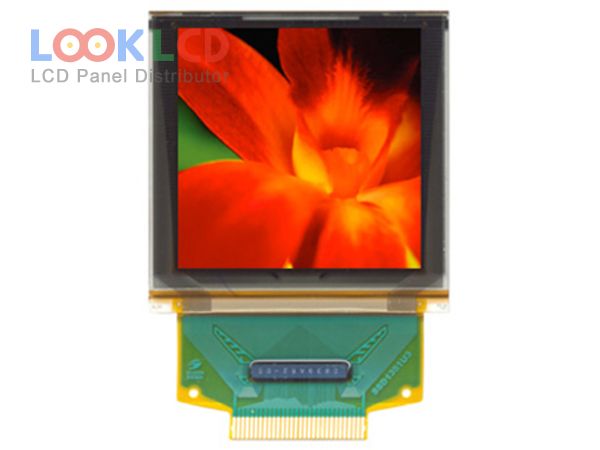

| PartZenbakia | UG-2828GDEDF11 |
| Marka | WiseChip |
| Tamaina | 1.5 |
| Aplikazio | MPH |
| Ebazpena | 128×128 |
| Konposizioa | OLED |
| Distira | 90 |
| CR | 10000:1 |
| Koloreak | 262K |
| Atzeko argia | self |
| Interfazea | CPU/SPI |
| panel marka | Univision |
| panel eredua | UG-2828GDEDF11 |
| panel mota | PM-OLED , OLED |
| panelaren tamaina | 1.5 inch |
| ebazpena | 128(RGB)×128 |
| eremu aktiboa | 26.855×26.864 mm |
| eskema | 33.8×34×1.7 mm |
| azalera | Antiglare |
| distira | 90 cd/m² (Typ.) |
| kontraste-erlazioa | 10000 : 1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193163% |
| ikuspegi angelua | 80/80/80/80 (Min.)(L/R/U/D) |
| gidariaren ic | COF Built-in SSD1351 |
| seinale interfazea | 8-bit 6800/8080 parallel, 3/4-wire SPI, 30 pins |
| sarrerako tentsioa | 2.8/2.5/1.8/13V (Typ.)(VCI/VDD/VDDIO/VCC) |
| aplikazio | MPH |
