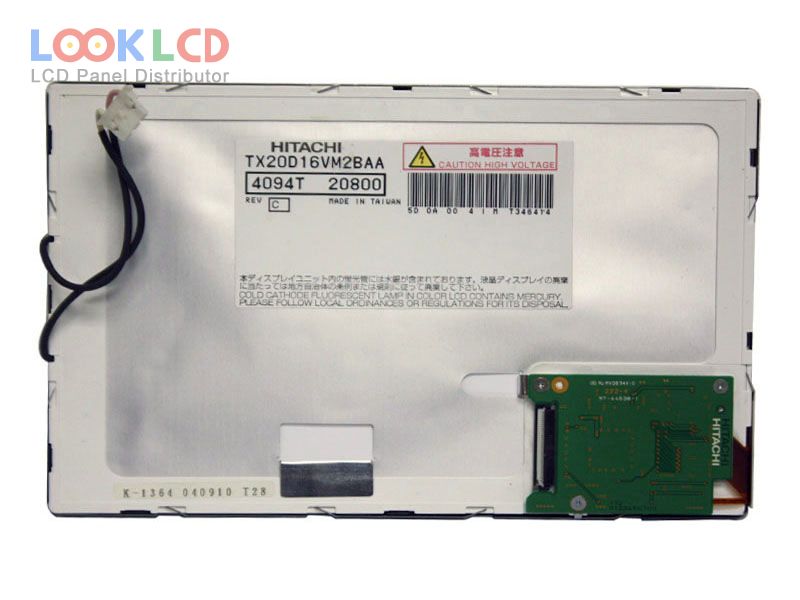

| PartZenbakia | TX20D16VM2BAA |
| Marka | KOE |
| Tamaina | 8.0 |
| Aplikazio | IA |
| Ebazpena | 800×480 |
| Konposizioa | LCM |
| Distira | 350 |
| CR | 200:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | TTL |
| panel marka | HITACHI |
| panel eredua | TX20D16VM2BAA |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 8.0 inch |
| ebazpena | 800(RGB)×480 , WVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 174×104.4 mm |
| eskema | 189×120 mm |
| azalera | Antiglare |
| distira | 350 cd/m² (Typ.) |
| kontraste-erlazioa | 200:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193160% |
| erantzun denbora | 20/10 (Typ.)(Tr/Td) |
| ikuspegi angelua | 50/50/50/50 (Min.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 1 pcsCCFLWithout Driver |
| seinale interfazea | CMOS (1 ch, 6-bit), 40 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | IA |
