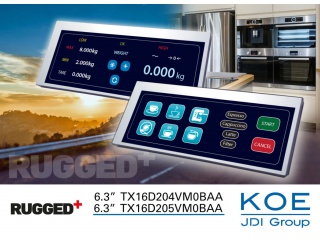

| PartZenbakia | TX16D204VM0BAA |
| Marka | KOE |
| Tamaina | 6.3 |
| Aplikazio | Industrial |
| Ebazpena | 800×280 |
| Konposizioa | a-Si TFT-LCD , LCM |
| Distira | |
| CR | 1000:1 |
| Koloreak | 262K |
| Atzeko argia | 3S3P |
| Interfazea | CMOS |
| panel marka | KOE |
| panelaren tamaina | 6.3" |
| ebazpena | 800(RGB)×280, 135PPI |
| bistaratzeko eremua | 150(W)×52.5(H) mm |
| eskema tamaina | 167(W)×69(H) ×9.5(D) mm |
| distira | 500 cd/m² (Typ.) |
| ikuspegi angelua | 85/85/85/85 (Typ.)(CR≥10) |
| ikuspegirik onena | Symmetry |
| bistaratzeko koloreak | 262K 52% NTSC |
| maiztasuna | 60Hz |
| panelaren pisua | 107g (Typ.) |
| seinale interfazea | CMOS (1 ch, 6-bit) , 50 pins FPC |
| sarrerako tentsioa | 3.3V (Typ.) |
| ingurunea | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 5.0G (49.0 m/s²) |
| panel eredua | TX16D204VM0BAA |
| panel mota | a-Si TFT-LCD , LCM |
| pixel formatua | RGB Vertical Stripe |
| bezela irekidura | 153(W)×55.5(H) mm |
| azalera | - |
| kontraste-erlazioa | 1000:1 (Typ.) (TM) |
| bistaratzeko modua | IPS, Normally Black, Transmissive |
| erantzun denbora | 40 (Typ.)(Tr+Td) |
| lanpara mota | 3S3P WLED , 50K hours , Without Driver |
| pantaila taktila | Without |
| aplikazio | Industrial |
