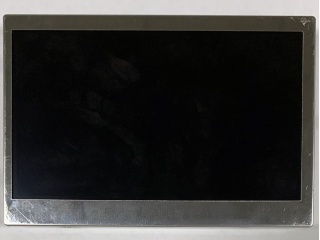

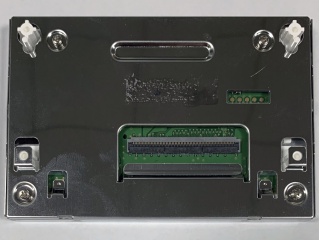

| PartZenbakia | TX11D201VM0BAA |
| Marka | KOE |
| Tamaina | 4.2 |
| Aplikazio | Automotive Display |
| Ebazpena | 480×272 |
| Konposizioa | a-Si TFT-LCD, LCM |
| Distira | |
| CR | 1500:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | Parallel |
| marka | KOE |
| eredua | TX11D201VM0BAA |
| diagonalaren tamaina | 4.2 inch |
| mota | a-Si TFT-LCD, LCM |
| pixel formatua | 480(RGB)×272 [WQVGA] 131PPI |
| konfigurazioa | RGB Vertical Stripe |
| eremu aktiboa | 92.88(H)×52.632(V) mm |
| eskema dim. | 102.5(H)×69(V) ×15.5(D) mm |
| bezela eremua | 95.28(H)×55.07(V) mm |
| tratamendua | Antiglare, Hard coating (2H) |
| luminantzia | 750 cd/m² (Typ.) |
| kontraste-erlazioa | 1500:1 (Typ.) (TM) |
| ikusi norabidea | Symmetry |
| erantzun denbora | 25 (Typ.)(Tr+Td) |
| ikuspegi angelua | 85/85/85/85 (Typ.)(CR≥10) |
| funtzionamendu modua | IPS, Normally Black, Transmissive |
| euskarria kolorea | 16.7M 65% NTSC |
| argi iturria | WLED [6S1P] , 50K hours , With LED Driver |
| pisua | 97.0g (Typ.) |
| entzat diseinatua | Automotive Display |
| fotograma-tasa | 60Hz |
| ukipen-panela | Without |
| interfaze mota | Parallel RGB (1 ch, 8-bit) , 68 pins Connector |
| energia hornidura | 3.3V (Typ.) |
| ingurunea | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²) |
