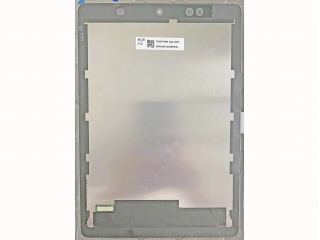

| PartZenbakia | TV097FMM-LB0-1SP0 |
| Marka | BOE |
| Tamaina | 9.7 |
| Aplikazio | Pad & Tablet |
| Ebazpena | 1280×1752 |
| Konposizioa | a-Si TFT-LCD , Assem |
| Distira | |
| CR | 1200:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | MIPI |
| marka | BOE |
| diagonalaren tamaina | 9.7 inch |
| pixel formatua | 1280(RGB)×1752 223PPI |
| eremu aktiboa | 145.344(H)×198.94(V) mm |
| bezela eremua | - |
| luminantzia | 320 cd/m² (Typ.) |
| ikusi norabidea | Symmetry |
| ikuspegi angelua | 80/80/80/80 (Typ.)(CR≥10) |
| euskarria kolorea | 16.7M 70% NTSC |
| pisua | 115g (Max.) |
| fotograma-tasa | 60Hz |
| interfaze mota | MIPI (4 data lanes) , 45 pins Connector |
| energia hornidura | 1.8/5.7/-5.7V (Typ.)(VDD/AVDD/AVEE) |
| ingurunea | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
| eredua | TV097FMM-LB0-1SP0 |
| mota | a-Si TFT-LCD , Assembly |
| konfigurazioa | RGB Vertical Stripe |
| eskema dim. | 150.344(H)×208.29(V) mm |
| tratamendua | Clear, Hard coating |
| kontraste-erlazioa | 1200:1 (Typ.) (TM) |
| erantzun denbora | 35 (Max.)(G to G) |
| funtzionamendu modua | - |
| argi iturria | WLED [9S4P] , 15K hours , W/O Driver |
| entzat diseinatua | Pad & Tablet |
| ukipen-panela | In-Cell Touch |
