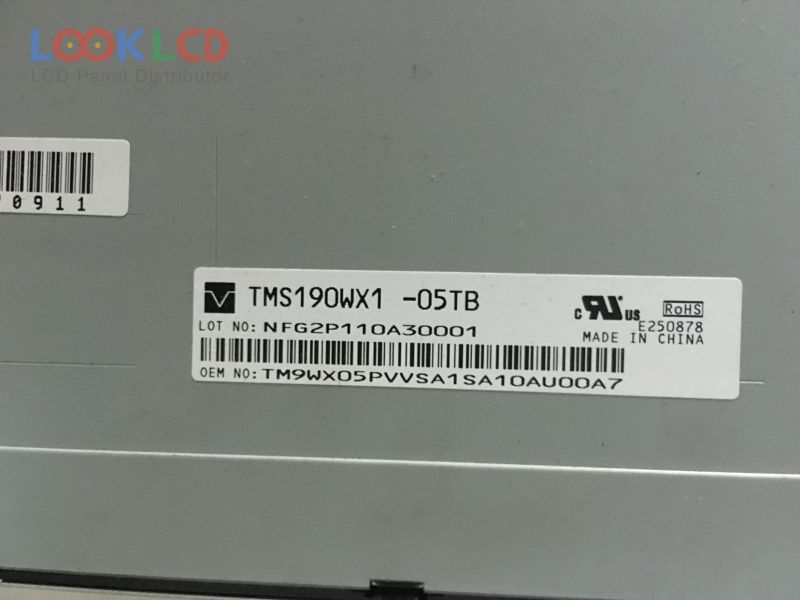

| PartZenbakia | TMS190WX1-05TB |
| Marka | Tianma |
| Tamaina | 19.0 |
| Aplikazio | DMPC |
| Ebazpena | 1440×900 |
| Konposizioa | LCM |
| Distira | 300 |
| CR | 1000:1 |
| Koloreak | 16.7M |
| Atzeko argia | CCFL |
| Interfazea | LVDS |
| panel marka | AVIC |
| panel eredua | TMS190WX1-05TB |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 19.0 inch |
| ebazpena | 1440(RGB)×900 , WXGA+ |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 408.24×255.15 mm |
| eskema | 428×278×17 mm |
| azalera | Antiglare |
| distira | 300 cd/m² (Typ.) |
| kontraste-erlazioa | 1000:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (6-bit + Hi-FRC), CIE193172% |
| erantzun denbora | 1.3/3.7 (Typ.)(Tr/Td) |
| ikuspegi angelua | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 4 pcsCCFLWithout Driver |
| seinale interfazea | LVDS (2 ch, 8-bit), 30 pins |
| sarrerako tentsioa | 5.0V (Typ.) |
| aplikazio | DMPC |
