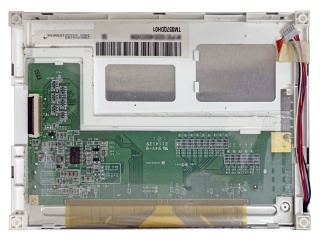

| PartZenbakia | TM057KDH01-10 |
| Marka | TIANMA |
| Tamaina | 5.7 |
| Aplikazio | Industrial |
| Ebazpena | 320×240 |
| Konposizioa | LCM, a-Si TFT-LCD |
| Distira | |
| CR | 500:1 |
| Koloreak | 262K |
| Atzeko argia | 5S3P |
| Interfazea | Parallel |
| fabrikatzailea | TIANMA |
| ereduaren izena | TM057KDH01-10 |
| pantailaren tamaina | 5.7 inch |
| pantaila mota | LCM, a-Si TFT-LCD |
| pixel-zenbakia | 320(RGB)×240 (QVGA) 70PPI |
| antolamendua | RGB Vertical Stripe |
| eremu aktiboa (mm) | 115.2 × 86.4 (H×V) |
| eskema (mm) | 144 × 104.6 × 12.8 (H×V×D) |
| bezela eremua (mm) | 118.2 × 89.4 (H×V) |
| tratamendua | Antiglare, Hard coating (3H) |
| luminantzia | 400 cd/m² (Typ.) |
| kontraste-erlazioa | 500 : 1 (Typ.) (TM) |
| ikuspegi angelua | 70/70/60/70 (Typ.)(CR≥10) |
| erantzuna | 20 (Typ.)(Tr+Td) ms |
| ikuspegi ona | 12 o'clock |
| lan egiteko modua | TN, Normally White, Transmissive |
| kolore-sakonera | 262K 52% NTSC |
| atzeko argia | 5S3P WLED , 50K hours , No Driver |
| masa | 157g (Typ.) |
| erabiltzen | Industrial |
| freskatze tasa | 60Hz |
| pantaila taktila | Without |
| seinale mota | Parallel RGB (1 ch, 6-bit) , Connector 33 pins |
| tentsio-hornidura | 3.3V (Typ.) |
| gehienez. balorazioak | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| KCS057QV1AJ-G32 | Kyocera | 5.7 | 320×240 |
| KG057QV1CA-G020W | Kyocera | 5.7 | 320×240 |
| KG057QV1CF-G050 | Kyocera | 5.7 | 320×240 |
| LT057AA34B00 | TOSHIBA | 5.7 | 320×240 |
| TM057KDH01 | Tianma | 5.7 | 320×240 |
| TM057KDH02 | Tianma | 5.7 | 320×240 |
| TM057KDH03 | Tianma | 5.7 | 320×240 |
| TM057KDH05 | Tianma | 5.7 | 320×240 |
| TM057KDHG03 | Tianma | 5.7 | 320×240 |
| TM057KDHG10 | Tianma | 5.7 | 320×240 |
