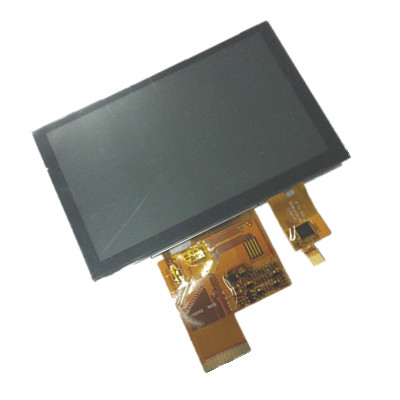

| PartZenbakia | S050WV49 |
| Marka | CDTECH |
| Tamaina | 5.0 |
| Aplikazio | Automotive Display I |
| Ebazpena | 800×480 |
| Konposizioa | LCM, a-Si TFT-LCD |
| Distira | |
| CR | 600:1 |
| Koloreak | 16.7M |
| Atzeko argia | 6S2P |
| Interfazea | Parallel |
| fabrikatzailea | CDTECH |
| ereduaren izena | S050WV49 |
| pantailaren tamaina | 5.0 inch |
| pantaila mota | LCM, a-Si TFT-LCD |
| pixel-zenbakia | 800(RGB)×480 (WVGA) 188PPI |
| antolamendua | RGB Vertical Stripe |
| eremu aktiboa (mm) | 108 × 64.8 (H×V) |
| eskema (mm) | 120.7 × 75.8 × 3.2 (H×V×D) |
| bezela eremua (mm) | 110.6 × 67.6 (H×V) |
| tratamendua | - |
| luminantzia | 350 cd/m² (Typ.) |
| kontraste-erlazioa | 600 : 1 (Typ.) (TM) |
| ikuspegi angelua | 65/65/55/65 (Typ.)(CR≥10) |
| erantzuna | 20/20 (Typ.)(Tr/Td) ms |
| ikuspegi ona | 12 o'clock |
| lan egiteko modua | TN, Normally White, Transmissive |
| kolore-sakonera | 16.7M 50% NTSC |
| atzeko argia | 6S2P WLED , 25K hours , No Driver |
| masa | TBD |
| erabiltzen | Automotive Display Industrial |
| freskatze tasa | 60Hz |
| pantaila taktila | Without |
| seinale mota | Parallel RGB (1 ch, 8-bit) , FPC 40 pins |
| tentsio-hornidura | 3.3/10.4/16.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| gehienez. balorazioak | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
