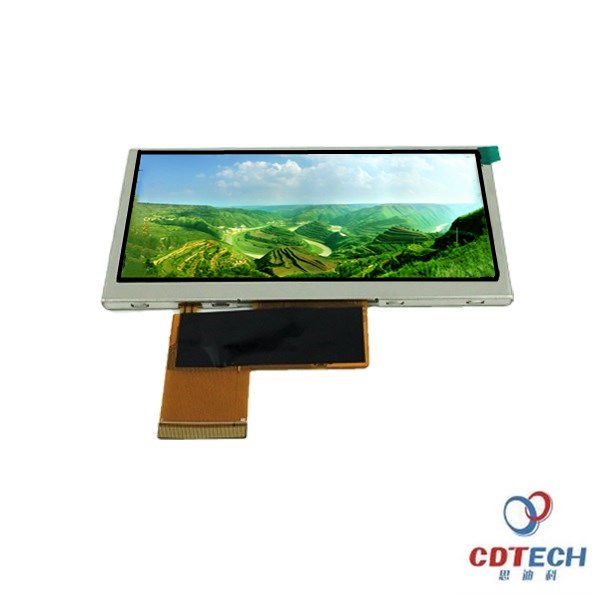

| PartZenbakia | S043WQ55-T |
| Marka | CDTECH |
| Tamaina | 4.3 |
| Aplikazio | Automotive Display I |
| Ebazpena | 480×272 |
| Konposizioa | a-Si TFT-LCD, LCM |
| Distira | |
| CR | 500:1 |
| Koloreak | 16.7M |
| Atzeko argia | 5S2P |
| Interfazea | Parallel |
| panel marka | CDTECH |
| panel eredua | S043WQ55-T |
| panelaren tamaina | 4.3" |
| panel mota | a-Si TFT-LCD, LCM |
| ebazpena | 480(RGB)×272, WQVGA, 128PPI |
| pixel formatua | RGB Vertical Stripe |
| bistaratzeko eremua | 95.04(W)×53.856(H) mm |
| bezela irekidura | - |
| eskema tamaina | 105.5(W)×67.2(H) mm |
| azalera | - |
| distira | 280 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) (TM) |
| ikuspegi angelua | 65/65/55/65 (Typ.)(CR≥10) |
| bistaratzeko modua | TN, Normally White, Transmissive |
| ikuspegirik onena | 12 o'clock |
| erantzun denbora | 10/15 (Typ.)(Tr/Td) |
| bistaratzeko koloreak | 16.7M 50% NTSC |
| lanpara mota | 5S2P WLED , 25K hours , Without Driver |
| maiztasuna | 60Hz |
| pantaila taktila | 4-wire Resistive Touch |
| panelaren pisua | TBD |
| aplikazio | Automotive Display Industrial |
| seinale interfazea | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| sarrerako tentsioa | 3.3V (Typ.) |
| ingurunea | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| 43WVF2A | SII | 4.3 | 480×800 |
| 990000475P | TPO | 4.3 | 800×480 |
| A043FW02 V0 | AUO | 4.3 | 480×272 |
| AT043TN13 TP | Innolux | 4.3 | 480×272 |
| AT043TN25 V.2 | Innolux | 4.3 | 480×272 |
| LB043WQ2-TD08 | LG Display | 4.3 | 480×272 |
| LMS430HF01 | Samsung | 4.3 | |
| LQ043T1DG01 | SHARP | 4.3 | 480×272 |
| LQ043Y1DX01B | SHARP | 4.3 | 480×800 |
| LR043JC111 | Innolux | 4.3 | 480×272 |
