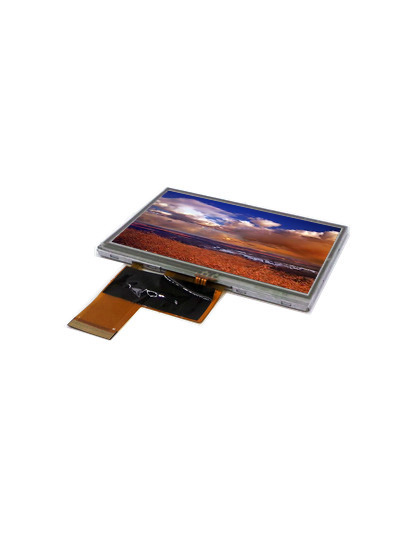

| PartZenbakia | S043WQ07H-T |
| Marka | CDTECH |
| Tamaina | 4.3 |
| Aplikazio | Automotive Display I |
| Ebazpena | 480×272 |
| Konposizioa | a-Si TFT-LCD , LCM |
| Distira | |
| CR | 500:1 |
| Koloreak | 16.7M |
| Atzeko argia | 5S2P |
| Interfazea | Parallel |
| panel marka | CDTECH |
| panelaren tamaina | 4.3" |
| ebazpena | 480(RGB)×272, WQVGA, 128PPI |
| bistaratzeko eremua | 95.04(W)×53.856(H) mm |
| eskema tamaina | 105.5(W)×67.2(H) ×4.35(D) mm |
| distira | 400 cd/m² (Typ.) |
| ikuspegi angelua | 65/65/55/65 (Typ.)(CR≥10) |
| ikuspegirik onena | 6 o'clock |
| bistaratzeko koloreak | 16.7M |
| maiztasuna | 60Hz |
| panelaren pisua | TBD |
| seinale interfazea | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| sarrerako tentsioa | 3.3V (Typ.) |
| ingurunea | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| panel eredua | S043WQ07H-T 1 Compatible |
| panel mota | a-Si TFT-LCD , LCM |
| pixel formatua | RGB Vertical Stripe |
| bezela irekidura | 97.84(W)×56.66(H) mm |
| azalera | - |
| kontraste-erlazioa | 500:1 (Typ.) (TM) |
| bistaratzeko modua | TN, Normally White, Transmissive |
| erantzun denbora | 10/15 (Typ.)(Tr/Td) |
| lanpara mota | 5S2P WLED , 25K hours , Without Driver |
| pantaila taktila | 4-wire Resistive Touch |
| aplikazio | Automotive Display Industrial |
| 43WVF1G | SII | 4.3 | 800×480 |
| A043FW03 V2 | AUO | 4.3 | 480×272 |
| AM480272H3TMQW-W2H | AMPIRE | 4.3 | 480×272 |
| DLC0430LZG-6 | Other | 4.3 | 480×272 |
| ED043CA-01D | Innolux | 4.3 | 480×272 |
| LMS430HF01-013 | Samsung | 4.3 | |
| LMS430HF11-003 | Samsung | 4.3 | 480×272 |
| LQ043T3DX0F | SHARP | 4.3 | 480×272 |
| LTE430WQ-F07 | Samsung | 4.3 | 480×272 |
| TD043MTEA2 | TPO | 4.3 | 800×480 |
