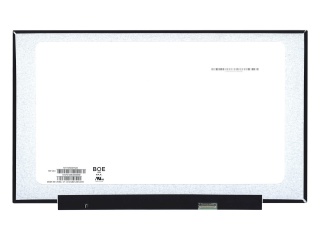

| PartZenbakia | NT173WDM-N25 |
| Marka | BOE |
| Tamaina | 17.3 |
| Aplikazio | Laptop |
| Ebazpena | 1600×900 |
| Konposizioa | a-Si TFT-LCD, LCM |
| Distira | |
| CR | 500:1 |
| Koloreak | 262K |
| Atzeko argia | 10S5P |
| Interfazea | eDP |
| panel marka | BOE |
| panel eredua | NT173WDM-N25 (BOE0954) |
| panelaren tamaina | 17.3" |
| panel mota | a-Si TFT-LCD, LCM |
| ebazpena | 1600(RGB)×900, HD+, 106PPI |
| pixel formatua | RGB Vertical Stripe |
| bistaratzeko eremua | 382.08(W)×214.92(H) mm |
| bezela irekidura | - |
| eskema tamaina | 389.88(W)×236.52(H) ×3.5(D) mm |
| azalera | Antiglare, Hard coating (3H) |
| distira | 250 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) (TM) |
| ikuspegi angelua | 45/45/20/40 (Min.)(CR≥10) |
| bistaratzeko modua | TN, Normally White, Transmissive |
| ikuspegirik onena | 6 o'clock |
| erantzun denbora | 12 (Typ.)(Tr+Td) |
| bistaratzeko koloreak | 262K 60% NTSC |
| lanpara mota | 10S5P WLED , 15K hours , With LED Driver |
| maiztasuna | 60Hz |
| pantaila taktila | Without |
| forma estiloa | Flat (PCBA Flat, T3.4~4.0mm) |
| aplikazio | Laptop |
| seinale interfazea | eDP (1 Lane) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| sarrerako tentsioa | 3.3V (Typ.) |
| ingurunea | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| B173HW02 V1 | AUO | 17.3 | 1920×1080 |
| B173RW01 V0 | AUO | 17.3 | 1600×900 |
| B173RW01 V2 HW7A | AUO | 17.3 | 1600×900 |
| HSD173PUW1-A | HannStar | 17.3 | 1920×1080 |
| LP173WD1-TLC2 | LG Display | 17.3 | 1600×900 |
| LP173WD1-TLN1 | LG Display | 17.3 | 1600×900 |
| LP173WF3-SLB1 | LG Display | 17.3 | 1920×1080 |
| LTN173KT01-J01 | Samsung | 17.3 | 1600×900 |
| N173FGE-E23 | Innolux | 17.3 | 1600×900 |
| N173FGE-L23 | Innolux | 17.3 | 1600×900 |
