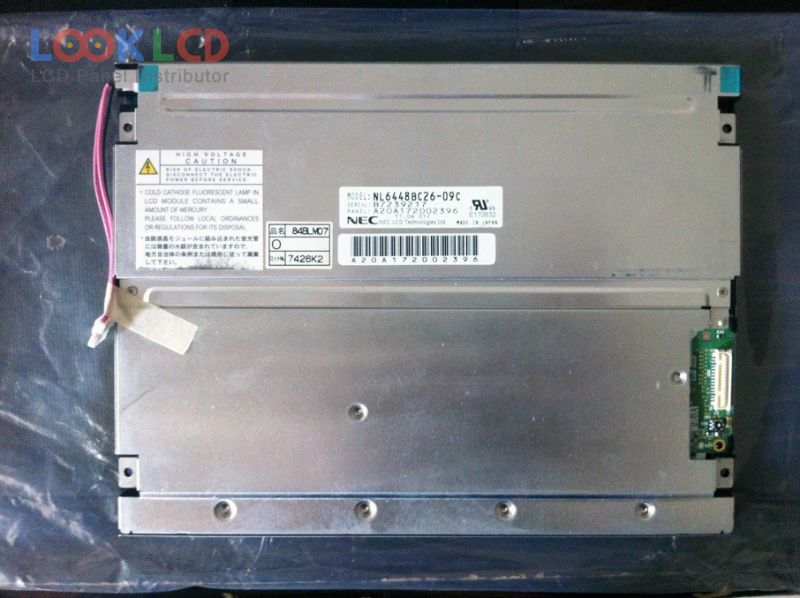

| PartZenbakia | NL6448BC26-09C |
| Marka | NLT |
| Tamaina | 8.4 |
| Aplikazio | IA |
| Ebazpena | 640×480 |
| Konposizioa | LCM |
| Distira | 750 |
| CR | 600:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | TTL |
| panel marka | NEC |
| panel eredua | NL6448BC26-09C |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 8.4 inch |
| ebazpena | 640(RGB)×480 , VGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 170.88×128.16 mm |
| eskema | 200×152×11 mm |
| azalera | Clear, Hard coating (2H), Antireflection |
| distira | 750 cd/m² (Typ.) |
| kontraste-erlazioa | 600:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193140% |
| erantzun denbora | 6/19 (Typ.)(Tr/Td) |
| ikuspegi angelua | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 2 pcsCCFLWithout Driver |
| seinale interfazea | CMOS (1 ch, 6-bit), 31 pins |
| sarrerako tentsioa | 3.3/5.0V (Typ.) |
| aplikazio | IA |
| NL6448BC26-09 | NLT | 8.4 | 640×480 |
| NL6448BC26-25 | NLT | 8.4 | 640×480 |
| NL6448BC28-01 | NLT | 9.0 | 640×480 |
| NL6448BC33-20 | NLT | 10.4 | 640×480 |
| NL6448BC33-46 | NLT | 10.4 | 640×480 |
| NL6448BC33-54 | NLT | 10.4 | 640×480 |
| NL6448BC33-63D | NLT | 10.4 | 640×480 |
| NL6448BC33-64 | NLT | 10.4 | 640×480 |
| NL6448BC33-70D | NLT | 10.4 | 640×480 |
| NL6448BC33-74 | NLT | 10.4 | 640×480 |
| AA121SL07 | Mitsubishi | 12.1 | 800×600 |
| AM-1024768RTNQW-00H | AMPIRE | 12.0 | 1024×768 |
| EL640.400-CB1 FRA | Lumineq | 9.1 | 640×400 |
| G158ETN01.0 | AUO | 15.8 | |
| LB104V03-TD01 | LG Display | 10.4 | 640×480 |
| LQ070Y3DG3A | SHARP | 7.0 | 800×480 |
| LTM09C016K | TOSHIBA | 9.4 | 640×480 |
| MC57T04L | Other | 5.7 | 320×240 |
| TCG035QVLPDANN-GN50 | Kyocera | 3.5 | 320×240 |
| TX26D05VM1CAA | KOE | 10.4 | 640×480 |
