| PartZenbakia | NE156QUM-NZ3 |
| Marka | BOE |
| Tamaina | 15.6 |
| Aplikazio | Laptop |
| Ebazpena | 3840×2160 |
| Konposizioa | LCM , Oxide TFT-LC |
| Distira | |
| CR | 1200:1 |
| Koloreak | 16.7M |
| Atzeko argia | 12S6P |
| Interfazea | eDP |
| fabrikatzailea | BOE |
| pantailaren tamaina | 15.6 inch |
| pixel-zenbakia | 3840(RGB)×2160 (UHD) 283PPI |
| eremu aktiboa (mm) | 344.218 × 193.622 (H×V) |
| bezela eremua (mm) | - |
| luminantzia | 400 cd/m² (Typ.) |
| ikuspegi angelua | 85/85/85/85 (Typ.)(CR≥10) |
| ikuspegi ona | Symmetry |
| kolore-sakonera | 16.7M 100% sRGB |
| eskema forma | Slim (PCBA Flat, T≤3.2mm) |
| freskatze tasa | 120Hz |

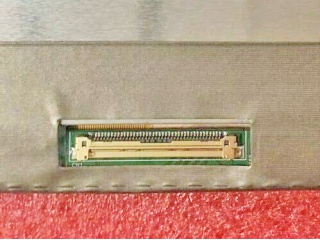

| seinale mota | eDP (4 Lanes) , eDP1.4 , HBR3 (8.1G/lane) , 40 pins Connector |
| tentsio-hornidura | 3.3V (Typ.) |
| gehienez. balorazioak | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |

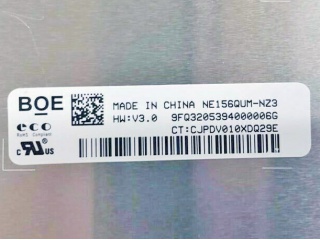

| ereduaren izena | NE156QUM-NZ3 (BOE08E0) |
| pantaila mota | LCM , Oxide TFT-LCD |
| antolamendua | RGB Vertical Stripe |
| eskema (mm) | 350.66 × 216.12 × 2.6 (H×V×D) |
| tratamendua | Antiglare, Hard coating (3H) |
| kontraste-erlazioa | 1200 : 1 (Typ.) (TM) |
| erantzuna | 10 (Typ.)(Tr+Td) ms |
| lan egiteko modua | ADS, Normally Black, Transmissive |
| atzeko argia | 12S6P WLED , 15K hours , With LED Driver |
| erabiltzen | Laptop |
| pantaila taktila | Without |
