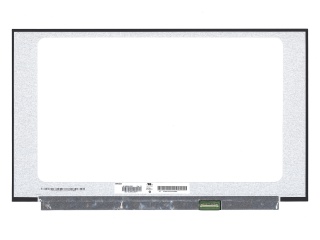

| PartZenbakia | N156BGA-EB3 |
| Marka | Innolux |
| Tamaina | 15.6 |
| Aplikazio | Laptop |
| Ebazpena | 1366×768 |
| Konposizioa | a-Si TFT-LCD, LCM |
| Distira | |
| CR | 600:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | eDP |
| marka | Innolux |
| eredua | N156BGA-EB3 (CMN15FD) |
| diagonalaren tamaina | 15.6 inch |
| mota | a-Si TFT-LCD, LCM |
| pixel formatua | 1366(RGB)×768 [WXGA] 100PPI |
| konfigurazioa | RGB Vertical Stripe |
| eremu aktiboa | 344.232(H)×193.536(V) mm |
| eskema dim. | 350.73(H)×216.56(V) ×3.2(D) mm |
| bezela eremua | - |
| tratamendua | Glare (Haze 0%), Hard coating (3H) |
| luminantzia | 220 cd/m² (Typ.) |
| kontraste-erlazioa | 600:1 (Typ.) (TM) |
| ikusi norabidea | 6 o'clock |
| erantzun denbora | 3/7 (Typ.)(Tr/Td) |
| ikuspegi angelua | 45/45/20/45 (Typ.)(CR≥10) |
| funtzionamendu modua | TN, Normally White, Transmissive |
| euskarria kolorea | 262K 45% NTSC |
| argi iturria | WLED , 15K hours , With LED Driver |
| forma estiloa | Slim (PCBA Flat, T≤3.2mm) |
| entzat diseinatua | Laptop |
| fotograma-tasa | 60Hz |
| ukipen-panela | Without |
| interfaze mota | eDP (1 Lane) , eDP1.2 , 30 pins Connector |
| energia hornidura | 3.3V (Typ.) |
| ingurunea | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
