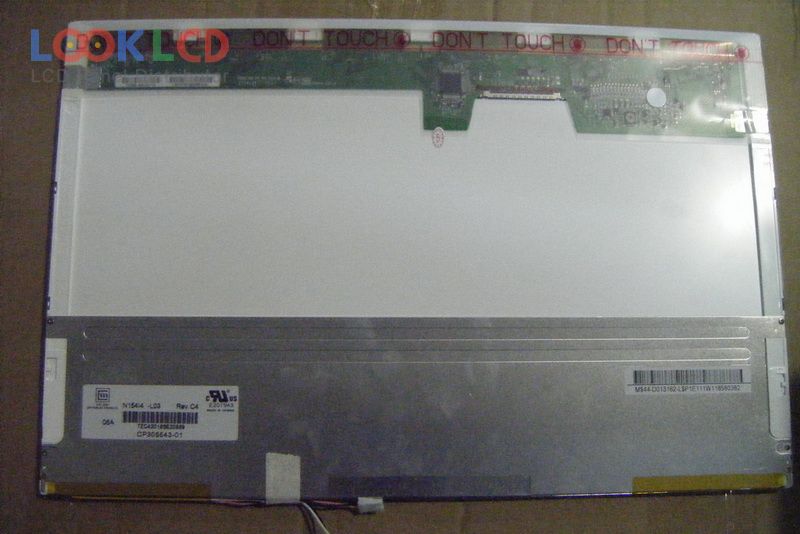

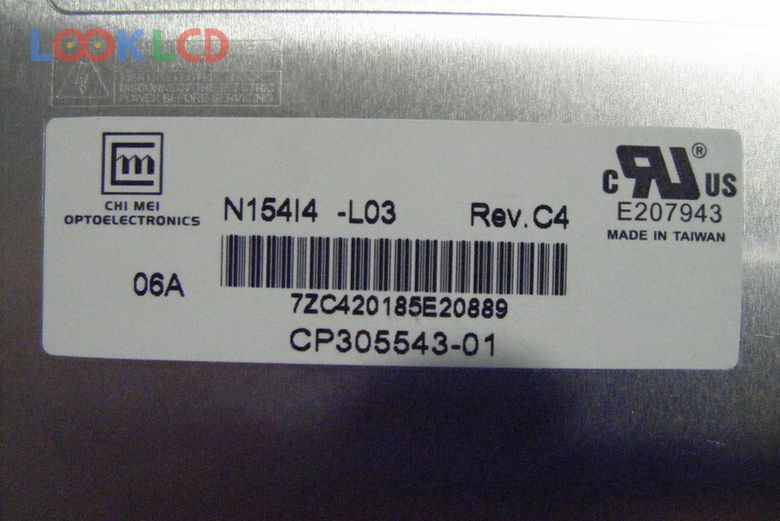

N154I4-L03

N154I4-L03
N154I4-L03
N154I4-L03 thumb N154I4-L03 thumb
Marka
Innolux
Tamaina
15.4
Aplikazio
NBPC
Ebazpena
1280×800
Konposizioa
LCM
Distira
600
CR
800:1
Koloreak
262K
Atzeko argia
CCFL
Interfazea
LVDS
In Stock
10
Zehaztapenak

PartZenbakia N154I4-L03
MarkaInnolux
Tamaina15.4
AplikazioNBPC
Ebazpena1280×800
KonposizioaLCM
Distira600
CR800:1
Koloreak262K
Atzeko argiaCCFL
InterfazeaLVDS
panel markaCMO
panel ereduaN154I4-L03 3 Compatible model
panel mota a-Si TFT-LCD , LCM
panelaren tamaina15.4 inch
ebazpena1280(RGB)×800 , WXGA
bistaratzeko moduaTN, Normally White, Transmissive
eremu aktiboa331.2×207 mm
eskema344×224×6.5 mm
forma estiloaWedge (PCBA Bent, Depth ≥5.2mm)
azaleraGlare (Haze 0%), Hard coating (3H)
distira600 cd/m² (Typ.)
kontraste-erlazioa800:1 (Typ.)
bistaratzeko koloreak262K (6-bit)
erantzun denbora1.3/3.7 (Typ.)(Tr/Td)
ikuspegi angelua60/60/40/60 (Typ.)(CR≥10)(L/R/U/D)
maiztasuna60Hz
lanpara mota2 pcsCCFLWithout Driver
seinale interfazeaLVDS (1 ch, 6-bit), 30 pins
sarrerako tentsioa3.3V (Typ.)
aplikazioNBPC
Familia Eredua
CLAA154WA05A CPT 15.4 1280×800
LP154WX4-TLCB LG Display 15.4 1280×800
N154I2-L01 Innolux 15.4 1280×800
N154I2-L02 Innolux 15.4 1280×800
N154I2-L05 Innolux 15.4 1280×800
N154I3-L03 Innolux 15.4 1280×800
N154I4-L03 Innolux 15.4 1280×800
N154I4-L04 Innolux 15.4 1280×800
N154I5-L02 Innolux 15.4 1280×800
N154I6-L03 Innolux 15.4 1280×800
