| PartZenbakia | N154C1-L01 |
| Marka | Innolux |
| Tamaina | 15.4 |
| Aplikazio | NBPC |
| Ebazpena | 1440×900 |
| Konposizioa | LCM |
| Distira | 300 |
| CR | 400:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | LVDS |
| panel marka | CMO |
| panel eredua | N154C1-L01 5 Compatible model |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 15.4 inch |
| ebazpena | 1440(RGB)×900 , WXGA+ |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 331.56×207.225 mm |
| eskema | 344×222×6.2 mm |
| forma estiloa | Wedge (PCBA Bent, Depth ≥5.2mm) |
| azalera | Glare (Haze 0%), Hard coating (3H), Reflection 1.2% (Typ.) |
| distira | 300 cd/m² (Typ.) |
| kontraste-erlazioa | 400:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193145% |
| erantzun denbora | 8/23 (Typ.)(Tr/Td) |
| ikuspegi angelua | 65/65/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 1 pcsCCFLWithout Driver |

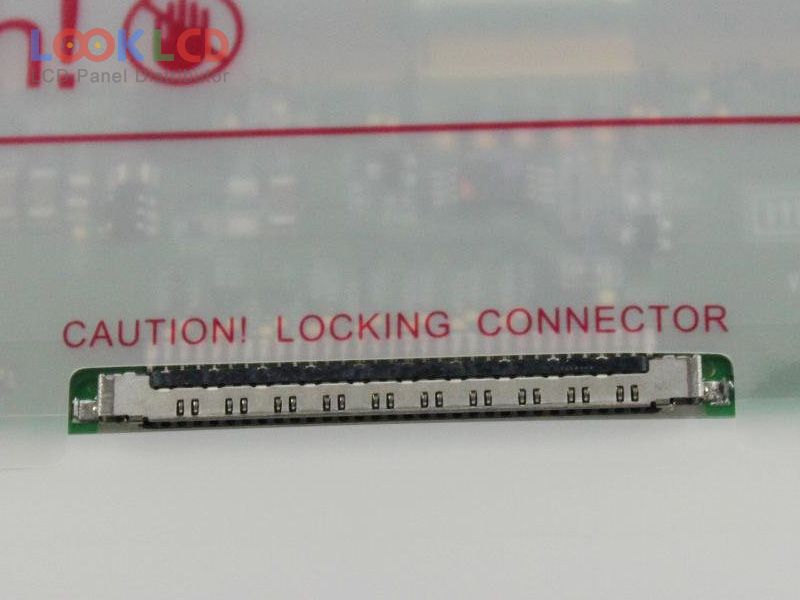

| seinale interfazea | LVDS (2 ch, 6-bit), 30 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | NBPC |
| B154SW01 V2 | AUO | 15.4 | 1680×1050 |
| LP154WP1-TLA1 | LG Display | 15.4 | 1440×900 |
| LP154WP2-TLA1 | LG Display | 15.4 | 1440×900 |
| LP154WX5-TLC2 | LG Display | 15.4 | 1280×800 |
| LTN154BT02-004 | Samsung | 15.4 | 1440×900 |
| LTN154BT05-001 | Samsung | 15.4 | 1440×900 |
| LTN154U2-L03 | Samsung | 15.4 | 1920×1200 |
| N154C1-L01 | Innolux | 15.4 | 1440×900 |
| N154C3-L02 | Innolux | 15.4 | 1440×900 |
| N154C6-L04 | Innolux | 15.4 | 1440×900 |
| B141PW03 V1 | AUO | 14.1 | 1440×900 |
| B160HW02 V0 | AUO | 16.0 | 1920×1080 |
| CLAA141WB05A | CPT | 14.1 | 1280×800 |
| LQ150U1LW22 | SHARP | 15.0 | 1600×1200 |
| LTN133AT23-001 | Samsung | 13.3 | 1366×768 |
| LTN154AT12-D01 | Samsung | 15.4 | 1280×800 |
| LTN154X9-L02 | Samsung | 15.4 | 1280×800 |
| LTN156AT17-103 | Samsung | 15.6 | 1366×768 |
| LTN173KT01-B07 | Samsung | 17.3 | 1600×900 |
| N141I3-L05 | Innolux | 14.1 | 1280×800 |
