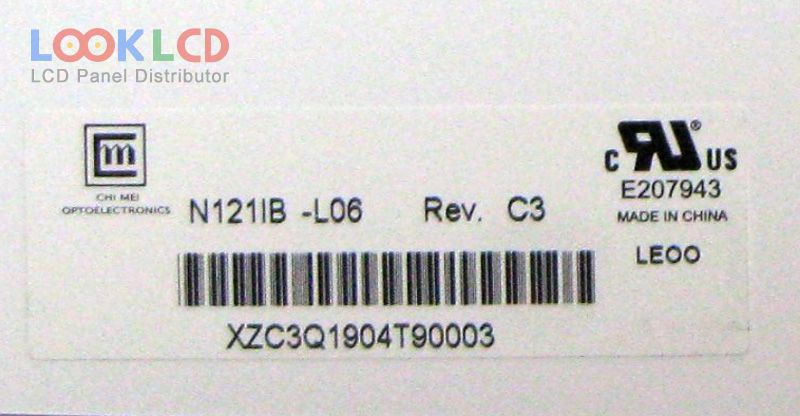

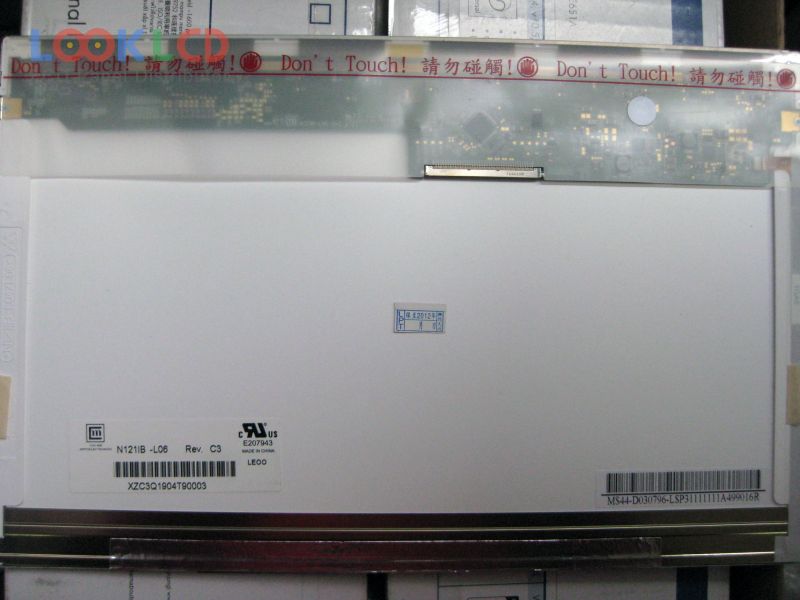

| PartZenbakia | N121IB-L06 |
| Marka | Innolux |
| Tamaina | 12.1 |
| Aplikazio | NBPC |
| Ebazpena | 1280×800 |
| Konposizioa | LCM |
| Distira | 220 |
| CR | 600:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | CMO |
| panel eredua | N121IB-L06 5 Compatible model |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 12.1 inch |
| ebazpena | 1280(RGB)×800 , WXGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 261.12×163.2 mm |
| eskema | 275.8×178×5.3 mm |
| forma estiloa | Wedge (PCBA Bent, Depth ≥5.2mm) |
| azalera | Glare (Haze 0%), Hard coating (3H) |
| distira | 220 cd/m² (Typ.) |
| kontraste-erlazioa | 600:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193140% |
| erantzun denbora | 3/7 (Typ.)(Tr/Td) |
| ikuspegi angelua | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 7S6PWLEDEmbedded (LED Driver) |
| seinale interfazea | LVDS (1 ch, 6-bit), 40 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | NBPC |
