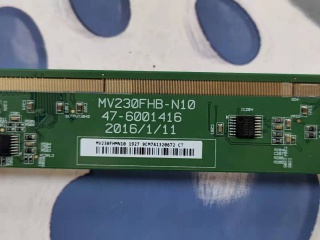

| PartZenbakia | MV230FHB-N10 |
| Marka | BOE |
| Tamaina | 23.0 |
| Aplikazio | Desktop Monitor |
| Ebazpena | 1920×1080 |
| Konposizioa | CELL , a-Si TFT-LC |
| Distira | |
| CR | 1000:1 |
| Koloreak | 16.7M |
| Atzeko argia | No |
| Interfazea | LVDS |
| fabrikatzailea | BOE |
| ereduaren izena | MV230FHB-N10 |
| pantailaren tamaina | 23.0 inch |
| pantaila mota | CELL , a-Si TFT-LCD |
| pixel-zenbakia | 1920(RGB)×1080 (FHD) 95PPI |
| antolamendua | RGB Vertical Stripe |
| eremu aktiboa (mm) | 509.184 × 286.416 (H×V) |
| eskema (mm) | - |
| bezela eremua (mm) | - |
| tratamendua | Antiglare (Haze 25%), Hard coating (3H) |
| luminantzia | 0 cd/m² |
| kontraste-erlazioa | 1000 : 1 (Min.) (TM) |
| ikuspegi angelua | 89/89/89/89 (Typ.)(CR≥10) |
| erantzuna | 14 (Typ.)(G to G) ms |
| ikuspegi ona | Symmetry |
| lan egiteko modua | ADS, Normally Black, Transmissive |
| beira lodiera | 0.50+0.50 mm |
| transmisibitatea | - |
| kolore-sakonera | 16.7M |
| atzeko argia | No B/L |
| masa | - |
| erabiltzen | Desktop Monitor |
| freskatze tasa | 60Hz |
| pantaila taktila | Without |
| seinale mota | LVDS (2 ch, 8-bit) , 30 pins Connector |
| tentsio-hornidura | 5.0V (Typ.) |
| gehienez. balorazioak | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
