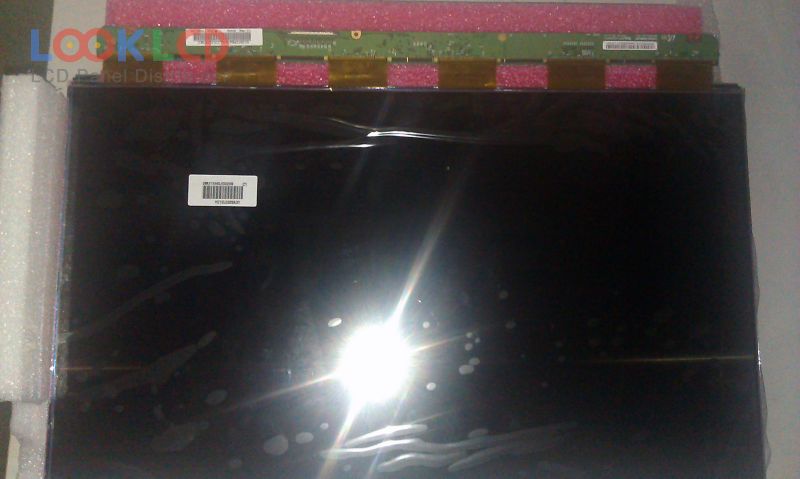

M215HGJ-P02

M215HGJ-P02
M215HGJ-P02
M215HGJ-P02 thumb M215HGJ-P02 thumb
Marka
Innolux
Tamaina
21.5
Aplikazio
DMPC
Ebazpena
1920×1080
Konposizioa
CELL
Distira
0
CR
1000:1
Koloreak
16.7M
Atzeko argia
No B/L
Interfazea
LVDS
In Stock
1500
Zehaztapenak

PartZenbakia M215HGJ-P02
MarkaInnolux
Tamaina21.5
AplikazioDMPC
Ebazpena1920×1080
KonposizioaCELL
Distira0
CR1000:1
Koloreak16.7M
Atzeko argiaNo B/L
InterfazeaLVDS
panel markaCHIMEI INNOLUX
panel ereduaM215HGJ-P02
panel mota a-Si TFT-LCD , CELL
panelaren tamaina21.5 inch
ebazpena1920(RGB)×1080 , FHD
bistaratzeko moduaTN, Normally White, Transmissive
eremu aktiboa476.64×268.11 mm
eskema487.14×280.41 mm
azaleraAntiglare (Haze 25%), Hard coating (3H)
beiraren sakonera0.50+0.50 mm
transmisibitatea6.1% (Typ.)(with Polarizer)
kontraste-erlazioa1000:1 (Typ.)
bistaratzeko koloreak16.7M (6-bit + Hi-FRC)
erantzun denbora1.5/3.5 (Typ.)(Tr/Td)
ikuspegi angelua85/85/80/80 (Typ.)(CR≥10)(L/R/U/D)
maiztasuna60Hz
seinale interfazeaLVDS (2 ch, 8-bit), 30 pins
sarrerako tentsioa5.0V (Typ.)
aplikazioDMPC
