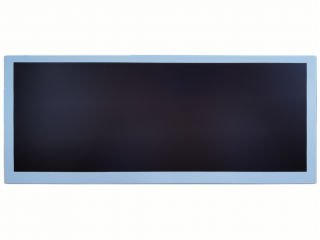

| PartZenbakia | M102AWF2 R2 |
| Marka | IVO |
| Tamaina | 10.3 |
| Aplikazio | Automotive Display |
| Ebazpena | 1920×720 |
| Konposizioa | a-Si TFT-LCD, LCM |
| Distira | |
| CR | 1000:1 |
| Koloreak | 16.7M |
| Atzeko argia | 8S3P |
| Interfazea | LVDS |
| panel marka | IVO |
| panel eredua | M102AWF2 R2 |
| panelaren tamaina | 10.3" |
| panel mota | a-Si TFT-LCD, LCM |
| ebazpena | 1920(RGB)×720, 200PPI |
| pixel formatua | RGB Vertical Stripe |
| bistaratzeko eremua | 243.65(W)×91.37(H) mm |
| bezela irekidura | 245.65(W)×93.66(H) mm |
| eskema tamaina | 262.04(W)×110.3(H) ×16(D) mm |
| azalera | Antiglare, Hard coating (3H) |
| distira | 800 cd/m² (Typ.) |
| kontraste-erlazioa | 1000:1 (Typ.) (TM) |
| ikuspegi angelua | 85/85/85/85 (Typ.)(CR≥10) |
| bistaratzeko modua | IPS, Normally Black, Transmissive |
| ikuspegirik onena | Symmetry |
| erantzun denbora | 20 (Typ.)(Tr+Td) |
| bistaratzeko koloreak | 16.7M 75% NTSC |
| lanpara mota | 8S3P WLED , 10K hours , Without Driver |
| maiztasuna | 60Hz |
| pantaila taktila | Without |
| panelaren pisua | 380g (Max.) |
| aplikazio | Automotive Display |
| seinale interfazea | LVDS (2 ch, 8-bit) , 50 pins Connector |
| sarrerako tentsioa | 3.3V (Typ.) |
| ingurunea | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 3.0G (29.4 m/s²) |
