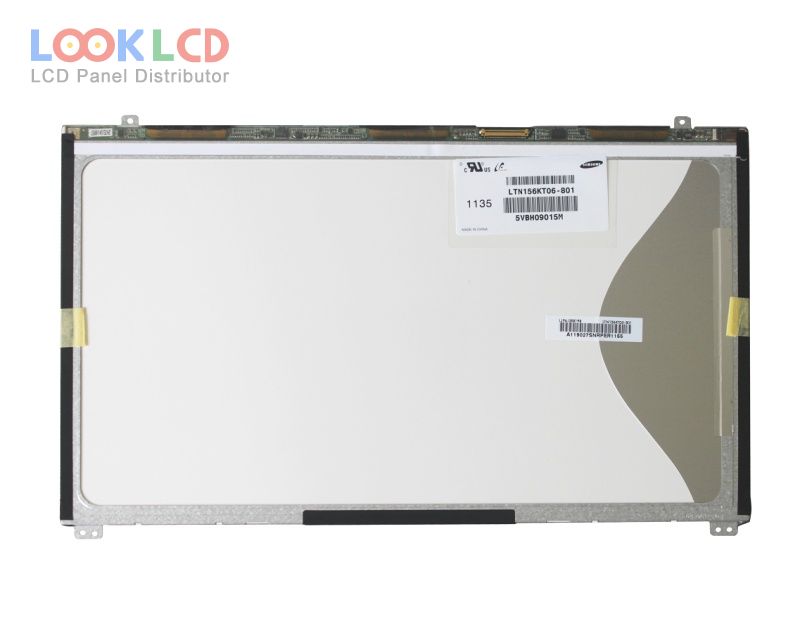

| PartZenbakia | LTN156KT06-801 |
| Marka | Samsung |
| Tamaina | 15.6 |
| Aplikazio | NBPC |
| Ebazpena | 1600×900 |
| Konposizioa | LCM |
| Distira | 300 |
| CR | 300:1 |
| Koloreak | 16.2M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | SAMSUNG |
| panel eredua | LTN156KT06-801 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 15.6 inch |
| ebazpena | 1600(RGB)×900 , HD+ |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 344.16×193.59 mm |
| eskema | 359.3×222.45×4 mm |
| forma estiloa | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| azalera | Antiglare (Haze 25%), Hard coating (3H) |
| distira | 300 cd/m² (Typ.) |
| kontraste-erlazioa | 300:1 (Min.) |
| bistaratzeko koloreak | 16.2M (6-bit + FRC), CIE193145% |
| erantzun denbora | 16 (Typ.)(Tr+Td) |
| ikuspegi angelua | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 10S4PWLEDEmbedded (LED Driver) |
| seinale interfazea | LVDS (2 ch, 6-bit), 40 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | NBPC |
