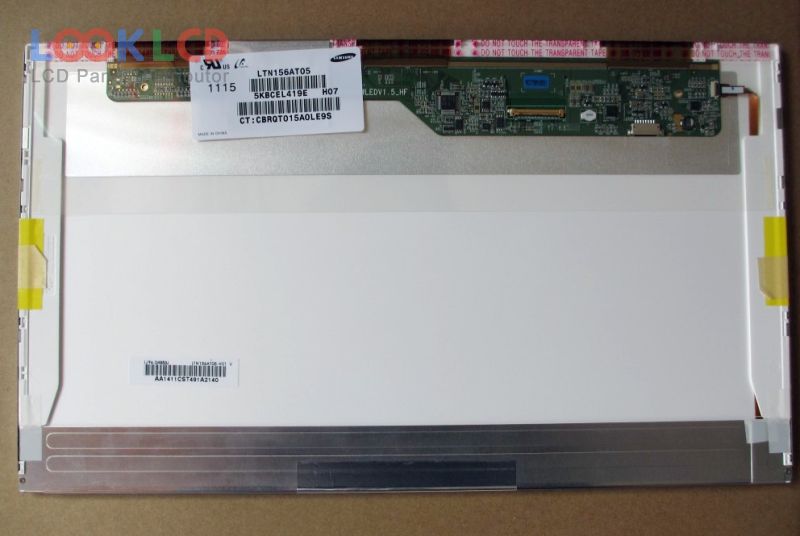

| PartZenbakia | LTN156AT05-H07 |
| Marka | Samsung |
| Tamaina | 15.6 |
| Aplikazio | NBPC |
| Ebazpena | 1366×768 |
| Konposizioa | LCM |
| Distira | 200 |
| CR | 500:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | SAMSUNG |
| panel eredua | LTN156AT05-H07 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 15.6 inch |
| ebazpena | 1366(RGB)×768 , WXGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 344.232×193.536 mm |
| eskema | 359.3×209.5×5.5 mm |
| forma estiloa | Wedge (PCBA Bent, Depth ≥5.2mm) |
| azalera | Hard coating (3H) |
| distira | 200 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Min.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193160% |
| erantzun denbora | 16 (Typ.)(Tr+Td) |
| ikuspegi angelua | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 11S5PWLEDEmbedded (LED Driver) |
| seinale interfazea | LVDS (1 ch, 6-bit), 40 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | NBPC |
| LTN156AT01-B02 | Samsung | 15.6 | 1366×768 |
| LTN156AT02-A04 | Samsung | 15.6 | 1366×768 |
| LTN156AT02-D04 | Samsung | 15.6 | 1366×768 |
| LTN156AT05-B01 | Samsung | 15.6 | 1366×768 |
| LTN156AT05-H02 | Samsung | 15.6 | 1366×768 |
| LTN156AT11-A01 | Samsung | 15.6 | 1366×768 |
| LTN156AT19-001 | Samsung | 15.6 | 1366×768 |
| LTN156AT23-W01 | Samsung | 15.6 | 1366×768 |
| LTN156AT24-P01 | Samsung | 15.6 | 1366×768 |
| LTN156AT35-W01 | Samsung | 15.6 | 1366×768 |
| B121EW09 V3 HW0A | AUO | 12.1 | 1280×800 |
| B170UW01 V0 | AUO | 17.0 | 1920×1200 |
| LP141X2 | LG Display | 14.1 | 1024×768 |
| LP154WP4-TLA1 | LG Display | 15.4 | 1440×900 |
| LP154WX4-TLC5 | LG Display | 15.4 | 1280×800 |
| LT121SS-105 | Samsung | 12.1 | 800×600 |
| LTN140AT07-B01 | Samsung | 14.0 | 1366×768 |
| LTN154X1-L01 | Samsung | 15.4 | 1280×800 |
| LTN173HT02-D02 | Samsung | 17.3 | 1920×1080 |
| TX38D88VC1GAA | KOE | 15.0 | 1024×768 |
