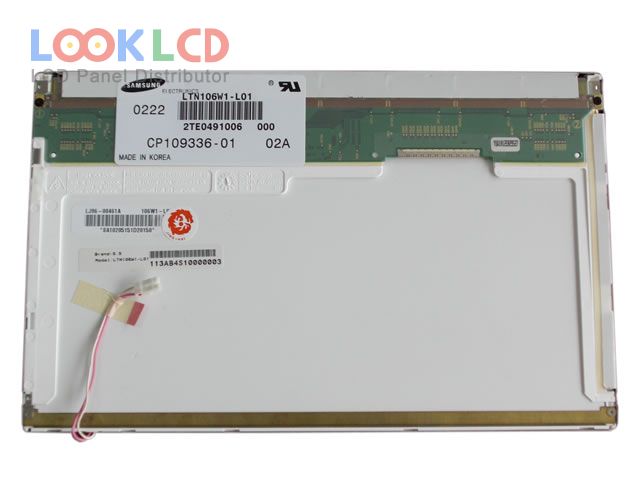

| PartZenbakia | LTN106W1-L01 |
| Marka | Samsung |
| Tamaina | 10.6 |
| Aplikazio | NBPC |
| Ebazpena | 1280×768 |
| Konposizioa | LCM |
| Distira | 185 |
| CR | 250:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | LVDS |
| panel marka | SAMSUNG |
| panel eredua | LTN106W1-L01 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.6 inch |
| ebazpena | 1280(RGB)×768 , WXGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 230.4×138.24 mm |
| eskema | 243.4×152 mm |
| azalera | Antiglare (Haze 25%), Hard coating (3H) |
| distira | 185 cd/m² (Typ.) |
| kontraste-erlazioa | 250:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 10/30 (Typ.)(Tr/Td) |
| ikuspegi angelua | 45/45/15/30 (Min.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 1 pcsCCFLWithout Driver |
| seinale interfazea | LVDS (2 ch, 6-bit), 30 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | NBPC |
