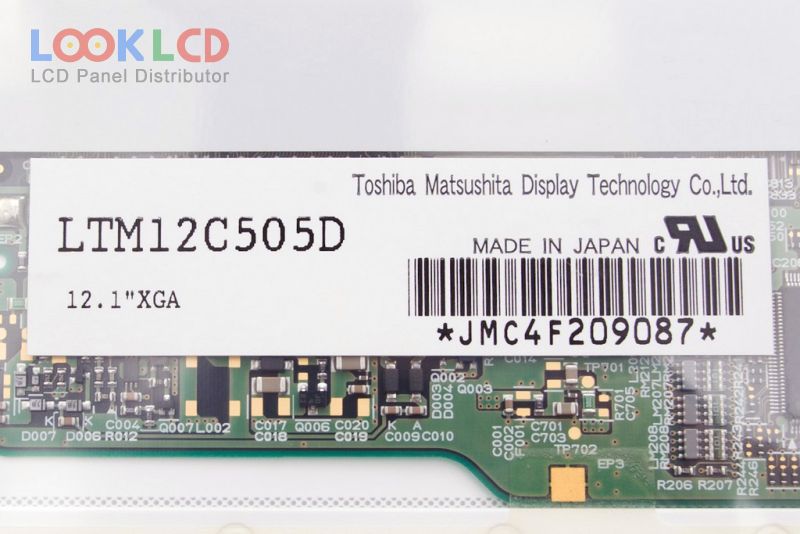

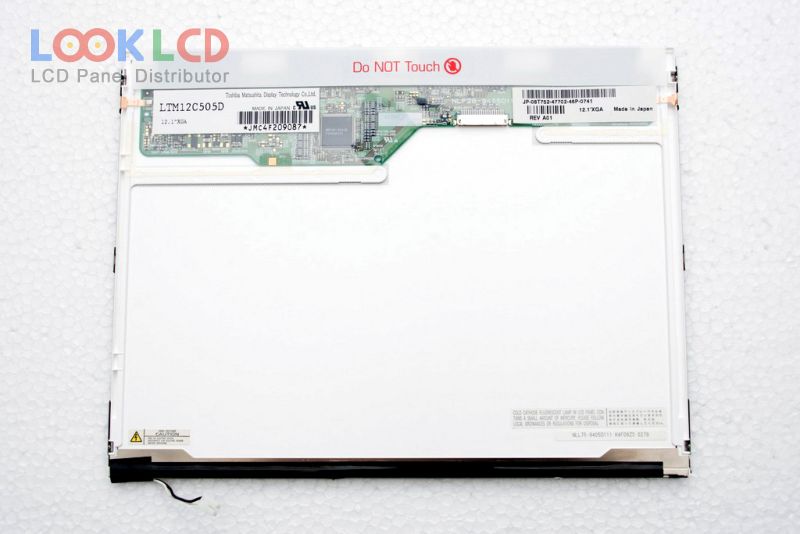

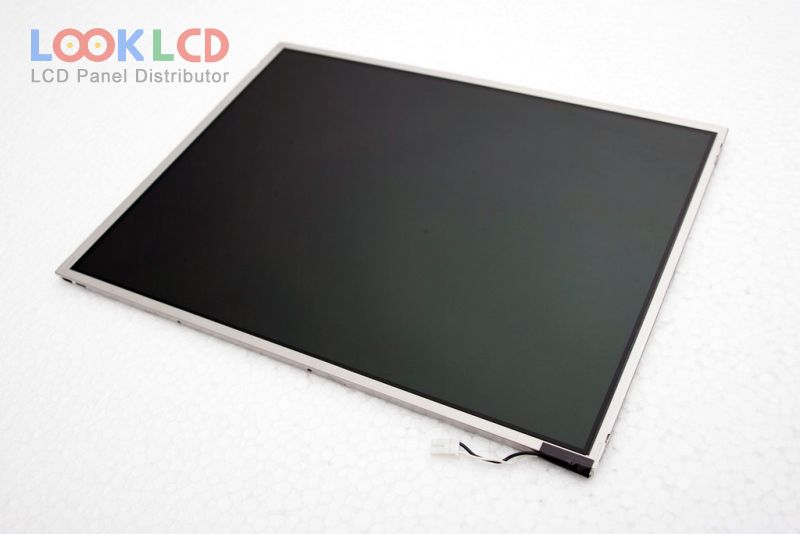

| PartZenbakia | LTM12C505D |
| Marka | TOSHIBA |
| Tamaina | 12.1 |
| Aplikazio | NBPC |
| Ebazpena | 1024×768 |
| Konposizioa | LCM |
| Distira | 165 |
| CR | 350:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | LVDS |
| panel marka | Toshiba Matsushita |
| panel eredua | LTM12C505D |
| panel mota | LTPS TFT-LCD , LCM |
| panelaren tamaina | 12.1 inch |
| ebazpena | 1024(RGB)×768 , XGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 245.76×184.32 mm |
| eskema | 261×199×5.3 mm |
| azalera | |
| distira | 165 cd/m² (Typ.) |
| kontraste-erlazioa | 350:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 50/50 (Max.)(Tr/Td) |
| ikuspegi angelua | |
| maiztasuna | 60Hz |
| lanpara mota | 1 pcsCCFLEmbedded (Inverter) |
| seinale interfazea | LVDS (1 ch, 6-bit), 20 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | NBPC |
