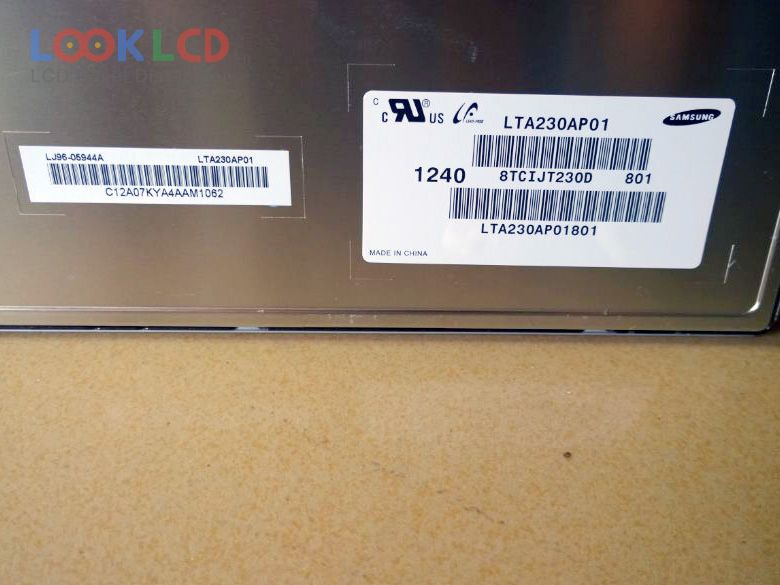

| PartZenbakia | LTA230AP01 |
| Marka | Samsung |
| Tamaina | 23.0 |
| Aplikazio | LCTV |
| Ebazpena | 1366×768 |
| Konposizioa | LCM |
| Distira | 250 |
| CR | 1000:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | SAMSUNG |
| panel eredua | LTA230AP01 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 23.0 inch |
| ebazpena | 1366×768(RGB) , WXGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 508.152×285.696 mm |
| eskema | 534×311.8 mm |
| azalera | Antiglare |
| distira | 250 cd/m² (Typ.) |
| kontraste-erlazioa | 1000:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (6-bit + Hi-FRC), CIE193168% |
| erantzun denbora | 8 (Typ.)(G to G) |
| ikuspegi angelua | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 11S3PWLEDWithout Driver |
| seinale interfazea | LVDS (1 ch, 8-bit), 30 pins |
| sarrerako tentsioa | 12.0V (Typ.) |
| aplikazio | LCTV |
