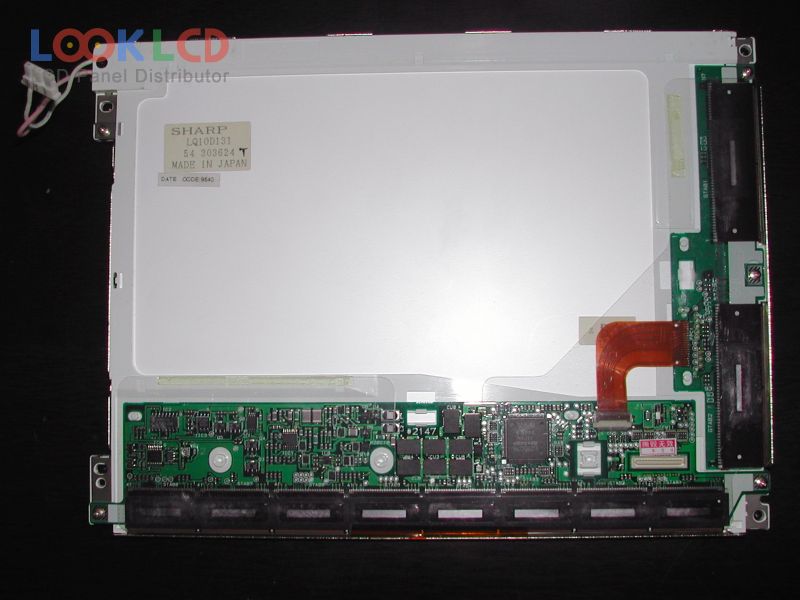

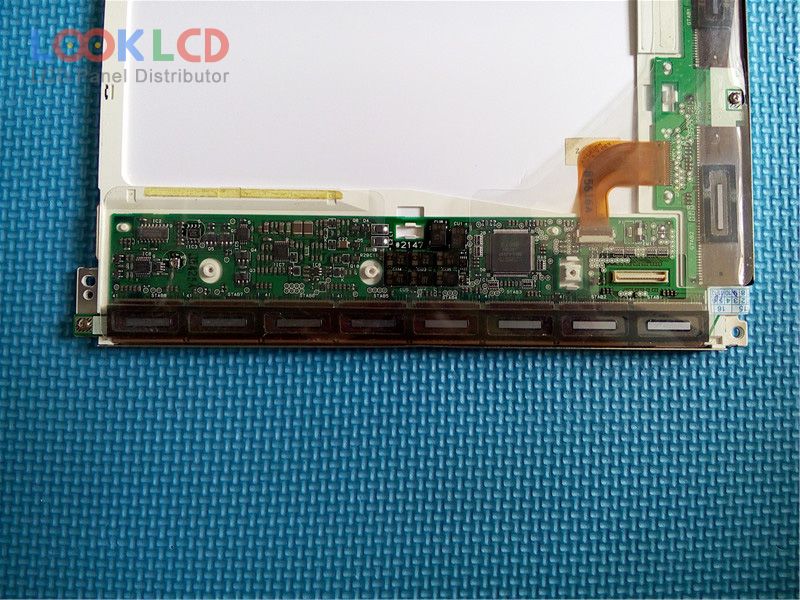

| PartZenbakia | LQ10D131 |
| Marka | SHARP |
| Tamaina | 10.4 |
| Aplikazio | IA |
| Ebazpena | 640×480 |
| Konposizioa | LCM |
| Distira | 70 |
| CR | 60:1 |
| Koloreak | 4096 |
| Atzeko argia | CCFL |
| Interfazea | TTL |
| panel marka | SHARP |
| panel eredua | LQ10D131 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.4 inch |
| ebazpena | 640(RGB)×480 , VGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 211.2×158.4 mm |
| eskema | 242.5×179.4×12 mm |
| azalera | Antiglare (Haze 25%), Hard coating (2H) |
| distira | 70 cd/m² (Typ.) |
| kontraste-erlazioa | 60:1 (Min.) |
| bistaratzeko koloreak | 4096 (4-bit) |
| erantzun denbora | 30/50 (Typ.)(Tr/Td) |
| ikuspegi angelua | 35/35/10/30 (Typ.)(CR≥10)(L/R/U/D) |
| lanpara mota | 1 pcsCCFLWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 4-bit), 31 pins |
| sarrerako tentsioa | 5.0V (Typ.)(VCC) |
| aplikazio | IA |
