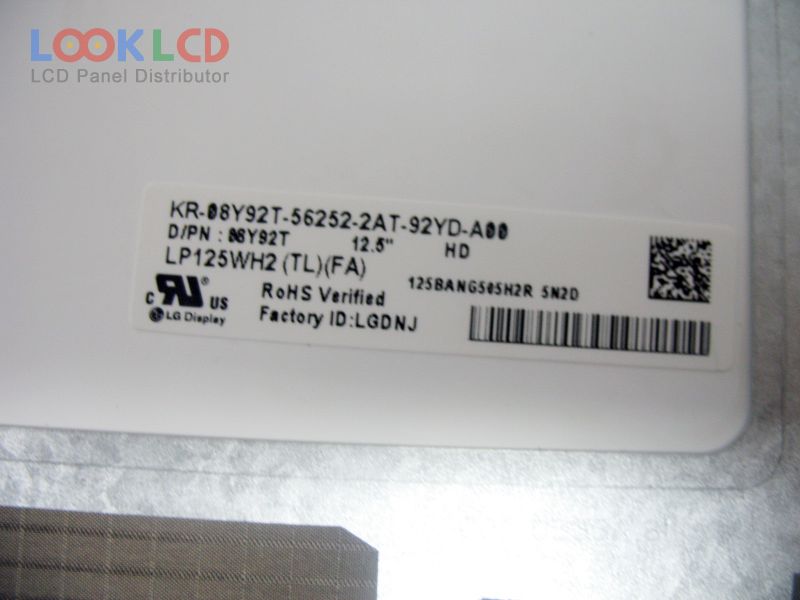

LP125WH2-TLFA

LP125WH2-TLFA
LP125WH2-TLFA
LP125WH2-TLFA thumb LP125WH2-TLFA thumb
Marka
LG Display
Tamaina
12.5
Aplikazio
NBPC
Ebazpena
1366×768
Konposizioa
LCM
Distira
200
CR
300:1
Koloreak
262K
Atzeko argia
WLED
Interfazea
LVDS
In Stock
13598
Zehaztapenak

PartZenbakia LP125WH2-TLFA
MarkaLG Display
Tamaina12.5
AplikazioNBPC
Ebazpena1366×768
KonposizioaLCM
Distira200
CR300:1
Koloreak262K
Atzeko argiaWLED
InterfazeaLVDS
panel markaLG Display
panel ereduaLP125WH2-TLFA
panel mota a-Si TFT-LCD , LCM
panelaren tamaina12.5 inch
ebazpena1366(RGB)×768 , WXGA
bistaratzeko moduaTN, Normally White, Transmissive
eremu aktiboa276.615×155.52 mm
eskema290.5×179.5×3.8 mm
forma estiloaFlat (PCBA Flat, Depth 3.4~4.0mm)
azaleraAntiglare
distira200 cd/m² (Typ.)
kontraste-erlazioa300:1 (Min.)
bistaratzeko koloreak262K (6-bit), CIE193146%
erantzun denbora16 (Typ.)(Tr+Td)
ikuspegi angelua40/40/10/30 (Min.)(CR≥10)(L/R/U/D)
maiztasuna60Hz
lanpara motaWLEDEmbedded (LED Driver)
seinale interfazeaLVDS (1 ch, 6-bit), 40 pins
sarrerako tentsioa360/415mA (Typ./Max.)
aplikazioNBPC
Familia Eredua
LP125WF1-SPA2 LG Display 12.5 1920×1080
LP125WF2-SPB1 LG Display 12.5 1920×1080
LP125WF2-SPB3 LG Display 12.5 1920×1080
LP125WH2-SLB2 LG Display 12.5 1366×768
LP125WH2-SLB3 LG Display 12.5 1366×768
LP125WH2-SPR1 LG Display 12.5 1366×768
LP125WH2-SPT1 LG Display 12.5 1366×768
LP125WH2-TLB1 LG Display 12.5 1366×768
LP125WH2-TLD1 LG Display 12.5 1366×768
LP125WH2-TLE1 LG Display 12.5 1366×768
