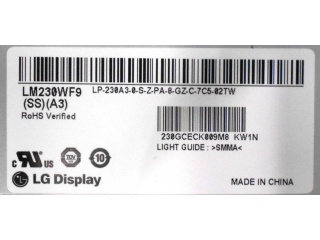

| PartZenbakia | LM230WF9-SSA3 |
| Marka | LG Display |
| Tamaina | 23.0 |
| Aplikazio | Desktop Monitor |
| Ebazpena | 1920×1080 |
| Konposizioa | a-Si TFT-LCD , LCM |
| Distira | |
| CR | 1000:1 |
| Koloreak | 16.7M |
| Atzeko argia | 14S4P |
| Interfazea | LVDS |
| panel marka | LG Display |
| panelaren tamaina | 23.0" |
| ebazpena | 1920(RGB)×1080, FHD, 95PPI |
| bistaratzeko eremua | 509.184(W)×286.416(H) mm |
| eskema tamaina | 517.2(W)×302.8(H) ×12.7(D) mm |
| distira | 250 cd/m² (Typ.) |
| ikuspegi angelua | 89/89/89/89 (Typ.)(CR≥10) |
| ikuspegirik onena | Symmetry |
| bistaratzeko koloreak | 16.7M 72% NTSC |
| maiztasuna | 60Hz |
| panelaren pisua | 1.79/1.88Kgs (Typ./Max.) |
| seinale interfazea | LVDS (2 ch, 8-bit) , 30 pins Connector |
| sarrerako tentsioa | 5.0V (Typ.) |
| ingurunea | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| panel eredua | LM230WF9-SSA3 |
| panel mota | a-Si TFT-LCD , LCM |
| pixel formatua | RGB Vertical Stripe |
| bezela irekidura | - |
| azalera | Antiglare (Haze 25%), Hard coating (3H) |
| kontraste-erlazioa | 1000:1 (Typ.) (TM) |
| bistaratzeko modua | IPS, Normally Black, Transmissive |
| erantzun denbora | 14 (Typ.)(G to G) |
| lanpara mota | 14S4P WLED , 30K hours , Without Driver |
| pantaila taktila | Without |
| aplikazio | Desktop Monitor |
