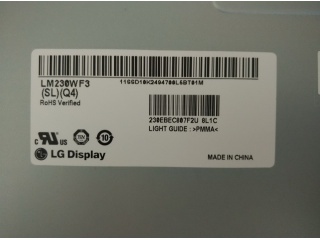

| PartZenbakia | LM230WF3-SLQ4 |
| Marka | LG Display |
| Tamaina | 23.0 |
| Aplikazio | Desktop Monitor |
| Ebazpena | 1920×1080 |
| Konposizioa | LCM, a-Si TFT-LCD |
| Distira | |
| CR | 1000:1 |
| Koloreak | 16.7M |
| Atzeko argia | 18S2P |
| Interfazea | LVDS |
| fabrikatzailea | LG Display |
| ereduaren izena | LM230WF3-SLQ4 |
| pantailaren tamaina | 23.0 inch |
| pantaila mota | LCM, a-Si TFT-LCD |
| pixel-zenbakia | 1920(RGB)×1080 (FHD) 95PPI |
| antolamendua | RGB Vertical Stripe |
| eremu aktiboa (mm) | 509.184 × 286.416 (H×V) |
| eskema (mm) | 533.2 × 312 × 11 (H×V×D) |
| bezela eremua (mm) | 513.8 × 291.0 (H×V) |
| tratamendua | - |
| luminantzia | - |
| kontraste-erlazioa | 1000 : 1 (Typ.) (TM) |
| ikuspegi angelua | 89/89/89/89 (Typ.)(CR≥10) |
| erantzuna | 14 (Typ.)(G to G) ms |
| ikuspegi ona | Symmetry |
| lan egiteko modua | IPS, Normally Black, Transmissive |
| kolore-sakonera | 16.7M |
| atzeko argia | 18S2P WLED , 30K hours |
| masa | 1.93/2.03Kgs (Typ./Max.) |
| erabiltzen | Desktop Monitor |
| freskatze tasa | 60Hz |
| pantaila taktila | Without |
| seinale mota | LVDS (2 ch, 8-bit) , Connector 30 pins |
| tentsio-hornidura | 5.0V (Typ.) |
| gehienez. balorazioak | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
