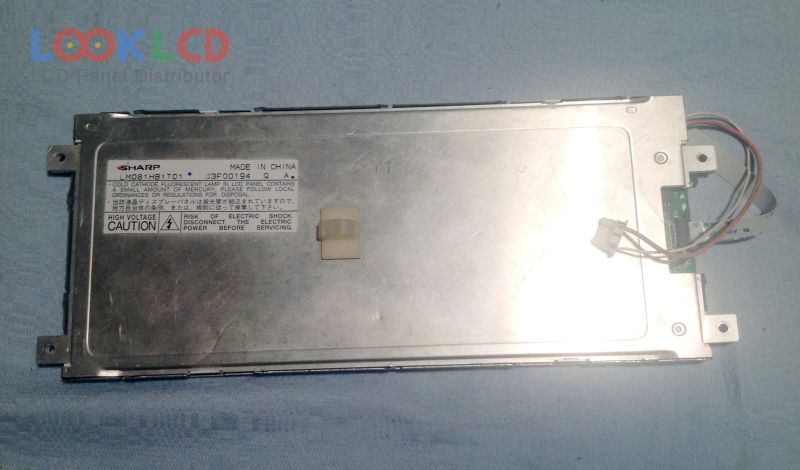

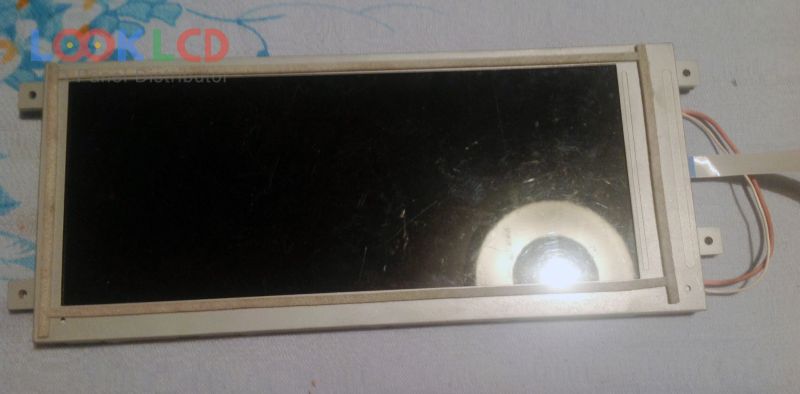

| PartZenbakia | LM081HB1T01 |
| Marka | SHARP |
| Tamaina | 8.1 |
| Aplikazio | IA |
| Ebazpena | 640×240 |
| Konposizioa | LCM |
| Distira | 150 |
| CR | 8:1 |
| Koloreak | Monochrome |
| Atzeko argia | CCFL |
| Interfazea | Parallel Data |
| panel marka | SHARP |
| panel eredua | LM081HB1T01 |
| panel mota | FSTN-LCD , LCM |
| panelaren tamaina | 8.1 inch |
| ebazpena | 640×240 , HVGA |
| bistaratzeko modua | STN, Black/White (Negative) |
| eremu aktiboa | 191.99×71.99 mm |
| eskema | 249×99.4 mm |
| azalera | |
| distira | 150 cd/m² (Typ.) |
| kontraste-erlazioa | 8 : 1 (Typ.) |
| bistaratzeko koloreak | Monochrome |
| erantzun denbora | 430/170 (Typ.)(Tr/Td) |
| ikuspegi angelua | 30/30/20/35 (Typ.)(CR≥2)(L/R/U/D) |
| lanpara mota | 1 pcsCCFLWithout Driver |
| seinale interfazea | Parallel Data (4-bit), 15 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | IA |
