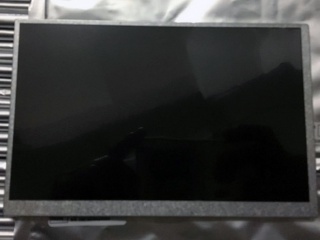

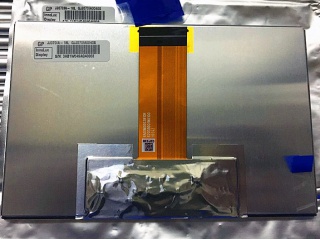

| PartZenbakia | JJ070IA-18L |
| Marka | Innolux |
| Tamaina | 7.0 |
| Aplikazio | Automotive Display |
| Ebazpena | 800×480 |
| Konposizioa | LCM , a-Si TFT-LCD |
| Distira | |
| CR | 1000:1 |
| Koloreak | 16.7M |
| Atzeko argia | 7S2P |
| Interfazea | LVDS |
| fabrikatzailea | Innolux |
| pantailaren tamaina | 7.0 inch |
| pixel-zenbakia | 800(RGB)×480 (WVGA) 133PPI |
| eremu aktiboa (mm) | 152.4 × 91.44 (H×V) |
| bezela eremua (mm) | 155.4 × 94.44 (H×V) |
| luminantzia | 750 cd/m² (Typ.) |
| ikuspegi angelua | 80/80/80/80 (Typ.)(CR≥10) |
| ikuspegi ona | Symmetry |
| kolore-sakonera | 16.7M 70% NTSC |
| masa | 195±9g |
| freskatze tasa | 60Hz |
| seinale mota | LVDS (1 ch, 8-bit) , 50 pins FPC |
| tentsio-hornidura | 3.3/13.3/26/-7V (Typ.)(VDD/VDDA/VGH/VGL) |
| gehienez. balorazioak | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| ereduaren izena | JJ070IA-18L |
| pantaila mota | LCM , a-Si TFT-LCD |
| antolamendua | RGB Vertical Stripe |
| eskema (mm) | 162.8 × 104.84 (H×V×D) |
| tratamendua | Antiglare |
| kontraste-erlazioa | 1000 : 1 (Typ.) (TM) |
| erantzuna | 15/10 (Typ.)(Tr/Td) ms |
| lan egiteko modua | IPS, Normally Black, Transmissive |
| atzeko argia | 7S2P WLED , 20K hours , No Driver |
| erabiltzen | Automotive Display |
| pantaila taktila | Without |
