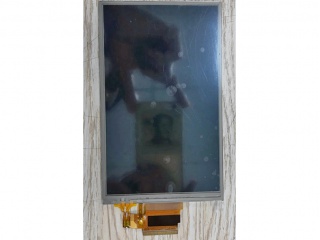

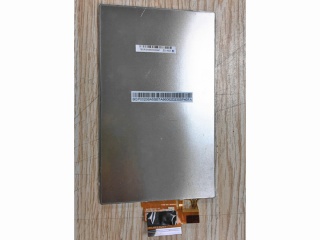

| PartZenbakia | HSD061IDW1-A00-R00 |
| Marka | HannStar |
| Tamaina | 6.1 |
| Aplikazio | Automotive Display |
| Ebazpena | 800×480 |
| Konposizioa | a-Si TFT-LCD, LCM |
| Distira | |
| CR | 500:1 |
| Koloreak | 262K |
| Atzeko argia | 6S2P |
| Interfazea | Parallel |
| panel marka | HannStar |
| panel eredua | HSD061IDW1-A00-R00 |
| panelaren tamaina | 6.1" |
| panel mota | a-Si TFT-LCD, LCM |
| ebazpena | 800(RGB)×480, WVGA, 153PPI |
| pixel formatua | RGB Vertical Stripe |
| bistaratzeko eremua | 132(W)×79.2(H) mm |
| bezela irekidura | 143.3(W)×81.6(H) mm |
| eskema tamaina | 144.8(W)×87.6(H) ×4.8(D) mm |
| azalera | Antiglare (Haze 8%), Hard coating (3H) |
| distira | 400 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) (TM) |
| ikuspegi angelua | 75/75/60/70 (Typ.)(CR≥10) |
| bistaratzeko modua | TN, Normally White, Transmissive |
| ikuspegirik onena | - |
| erantzun denbora | 25 (Typ.)(Tr+Td) |
| bistaratzeko koloreak | 262K 48% NTSC |
| lanpara mota | 6S2P WLED , 10K hours , Without Driver |
| maiztasuna | 60Hz |
| pantaila taktila | 4-wire Resistive Touch |
| panelaren pisua | 140g (Max.) |
| aplikazio | Automotive Display |
| seinale interfazea | Parallel RGB (1 ch, 6-bit) + SPI , 50 pins FPC |
| sarrerako tentsioa | 1.8/3.3/3.3V (Typ.)(VDD1/VDD2/VCI) |
| ingurunea | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -40 ~ 85 °C |
| A061FW01 V0 | AUO | 6.1 | 480×234 |
| A061VW01 V0 | AUO | 6.1 | 800×480 |
| CLAA061LA0ACW | CPT | 6.1 | 800×480 |
| CLAA061LA0BCW | CPT | 6.1 | 800×480 |
| CLAA061LA0DCW | CPT | 6.1 | 800×480 |
| GCX142AKM-E | SONY | 6.1 | 800×480 |
| K6488L-FF | CITIZEN | 6.1 | 640×480 |
| LA061WQ1-TD04 | LG Display | 6.1 | 480×272 |
| LQ061Y1VG01 | SHARP | 6.1 | 800×480 |
| PM061WX1 | E Ink | 6.1 | 800×480 |
