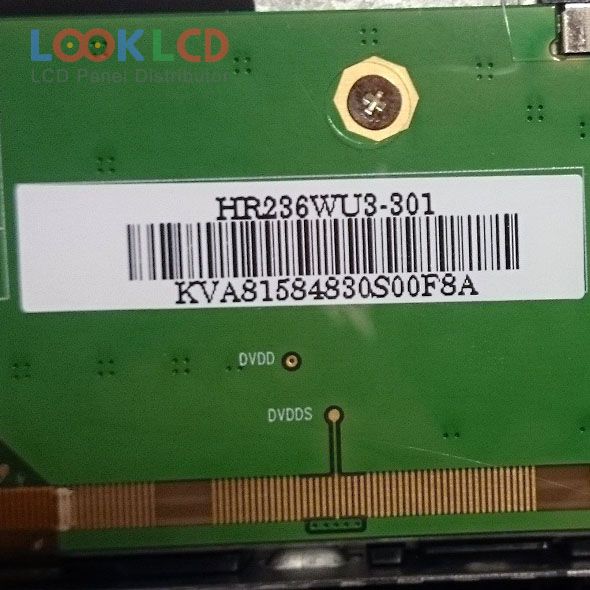

| PartZenbakia | HR236WU3-301 |
| Marka | BOE |
| Tamaina | 23.6 |
| Aplikazio | DMPC |
| Ebazpena | 1920×1080 |
| Konposizioa | CELL |
| Distira | 0 |
| CR | 1000:1 |
| Koloreak | 16.7M |
| Atzeko argia | No B/L |
| Interfazea | LVDS |
| panel marka | BOE |
| panel eredua | HR236WU3-301 |
| panel mota | a-Si TFT-LCD , CELL |
| panelaren tamaina | 23.6 inch |
| ebazpena | 1920(RGB)×1080 , FHD |
| bistaratzeko modua | ADS, Normally Black, Transmissive |
| eremu aktiboa | 521.28×293.22 mm |
| eskema | 535.9×307 mm |
| azalera | Antiglare (Haze 25%), Hard coating (3H) |
| beiraren sakonera | 0.50+0.50 mm |
| transmisibitatea | 4.35% (Typ.)(with Polarizer) |
| kontraste-erlazioa | 1000:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (6-bit + Hi-FRC) |
| erantzun denbora | 14 (Typ.)(G to G) |
| ikuspegi angelua | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| seinale interfazea | LVDS (2 ch, 8-bit), 30 pins |
| sarrerako tentsioa | 5.0V (Typ.) |
| aplikazio | DMPC |
