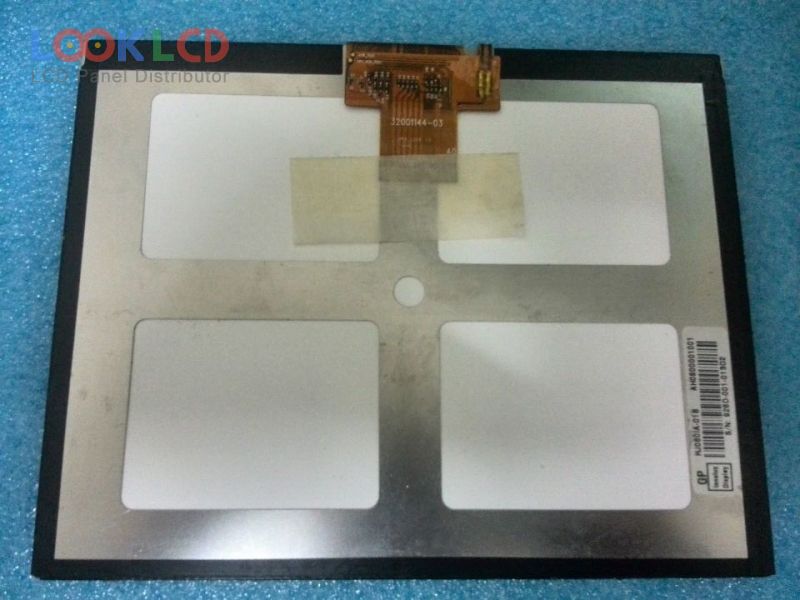

| PartZenbakia | HJ080IA-01B |
| Marka | Innolux |
| Tamaina | 8.0 |
| Aplikazio | PAD |
| Ebazpena | 1024×768 |
| Konposizioa | LCM |
| Distira | 350 |
| CR | 800:1 |
| Koloreak | 262K/16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | CHIMEI INNOLUX |
| panel eredua | HJ080IA-01B |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 8.0 inch |
| ebazpena | 1024(RGB)×768 , XGA |
| bistaratzeko modua | IPS, Normally Black, Transmissive |
| eremu aktiboa | 162.048×121.536 mm |
| eskema | 174×136×2.9 mm |
| azalera | Hard coating |
| distira | 350 cd/m² (Typ.) |
| kontraste-erlazioa | 800:1 (Typ.) |
| bistaratzeko koloreak | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| erantzun denbora | 25 (Typ.)(Tr+Td) |
| ikuspegi angelua | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 3S11PWLEDWithout Driver |
| seinale interfazea | LVDS (1 ch, 6/8-bit), 40 pins |
| sarrerako tentsioa | 3.3/10.0/18.9/-7.8V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikazio | PAD |
