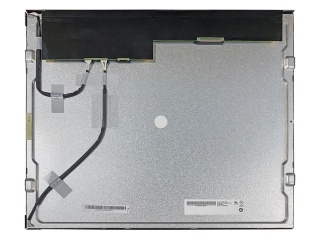

| PartZenbakia | G190EAN01.6 |
| Marka | AUO |
| Tamaina | 19.0 |
| Aplikazio | Industrial Medical I |
| Ebazpena | 1280×1024 |
| Konposizioa | a-Si TFT-LCD, LCM |
| Distira | |
| CR | 1000:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| marka | AUO |
| eredua | G190EAN01.6 |
| diagonalaren tamaina | 19.0 inch |
| mota | a-Si TFT-LCD, LCM |
| pixel formatua | 1280(RGB)×1024 [SXGA] 86PPI |
| konfigurazioa | RGB Vertical Stripe |
| eremu aktiboa | 376.32(H)×301.056(V) mm |
| eskema dim. | 396(H)×324(V) ×15.8(D) mm |
| bezela eremua | 380.32(H)×305.06(V) mm |
| tratamendua | Antiglare |
| luminantzia | 1000 cd/m² (Typ.) |
| kontraste-erlazioa | 1000:1 (Typ.) (TM) |
| ikusi norabidea | Symmetry |
| erantzun denbora | 13/12 (Typ.)(Tr/Td) |
| ikuspegi angelua | 89/89/89/89 (Typ.)(CR≥10) |
| funtzionamendu modua | AHVA, Normally Black, Transmissive |
| euskarria kolorea | 16.7M 72% NTSC |
| argi iturria | WLED , 50K hours , With LED Driver |
| pisua | 1.70±0.15Kgs |
| entzat diseinatua | Industrial Medical Imaging Outdoor High Brightness |
| fotograma-tasa | 60Hz |
| ukipen-panela | Without |
| interfaze mota | LVDS (2 ch, 8-bit) |
| energia hornidura | 5.0V (Typ.) |
| ingurunea | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| G190EAN01.0 | AUO | 19.0 | 1280×1024 |
| G190EG01 V0 | AUO | 19.0 | 1280×1024 |
| G190EG01 V1 | AUO | 19.0 | 1280×1024 |
| G190EG01 V2 | AUO | 19.0 | 1280×1024 |
| G190EG02 V0 | AUO | 19.0 | 1280×1024 |
| G190EG02 V1 | AUO | 19.0 | 1280×1024 |
| G190ETN01.0 | AUO | 19.0 | 1280×1024 |
| G190ETN01.2 | AUO | 19.0 | 1280×1024 |
| G190ETN01.4 | AUO | 19.0 | 1280×1024 |
| G190ETN02.0 | AUO | 19.0 | 1280×1024 |
