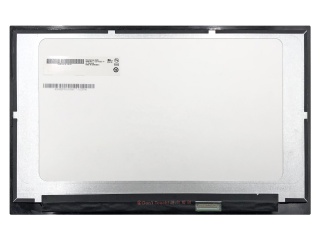

| PartZenbakia | G156HAB01.0 |
| Marka | AUO |
| Tamaina | 15.6 |
| Aplikazio | Industrial |
| Ebazpena | 1920×1080 |
| Konposizioa | a-Si TFT-LCD , Assem |
| Distira | |
| CR | 800:1 |
| Koloreak | 16.2M |
| Atzeko argia | WLED |
| Interfazea | eDP |
| panel marka | AUO |
| panelaren tamaina | 15.6" |
| ebazpena | 1920(RGB)×1080, FHD, 141PPI |
| bistaratzeko eremua | 344.16(W)×193.59(H) mm |
| eskema tamaina | 361(W)×227(H) ×4.9(D) mm |
| distira | 300 cd/m² (Typ.) |
| ikuspegi angelua | 89/89/89/89 (Typ.)(CR≥10) |
| ikuspegirik onena | Symmetry |
| bistaratzeko koloreak | 16.2M 45% NTSC |
| maiztasuna | 60Hz |
| panelaren pisua | 620g (Max.) |
| seinale interfazea | eDP (2 Lanes) , eDP1.2 , 40 pins Connector |
| sarrerako tentsioa | 3.3V (Typ.) |
| ingurunea | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| panel eredua | G156HAB01.0 |
| panel mota | a-Si TFT-LCD , Assembly |
| pixel formatua | RGB Vertical Stripe |
| bezela irekidura | - |
| azalera | Hard coating (7H) |
| kontraste-erlazioa | 800:1 (Typ.) (TM) |
| bistaratzeko modua | - |
| erantzun denbora | 25 (Typ.)(Tr+Td) |
| lanpara mota | WLED , 30K hours , With LED Driver |
| pantaila taktila | On-Cell Touch |
| aplikazio | Industrial |
| G156HAN01.0 | AUO | 15.6 | 1920×1080 |
| G156HTD01.0 | AUO | 15.6 | 1920×1080 |
| G156HTN01.0 | AUO | 15.6 | 1920×1080 |
| G156HTN02.0 | AUO | 15.6 | 1920×1080 |
| G156HTN02.1 | AUO | 15.6 | 1920×1080 |
| LP156WF1-TLF4 | LG Display | 15.6 | 1920×1080 |
| LP156WF7-SPB2 | LG Display | 15.6 | 1920×1080 |
| LTN156AT36-W01 | Samsung | 15.6 | 1366×768 |
| N156BGE-E21 | Innolux | 15.6 | 1366×768 |
| NV156FHM-N41 | BOE | 15.6 | 1920×1080 |
