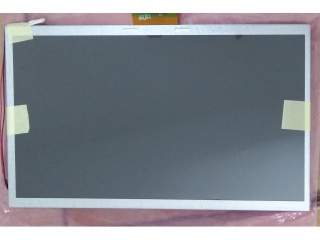

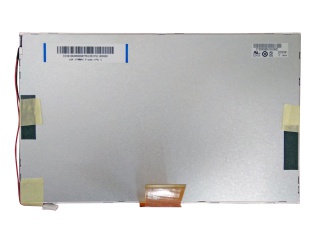

| PartZenbakia | G101STN01.5 |
| Marka | AUO |
| Tamaina | 10.1 |
| Aplikazio | Industrial |
| Ebazpena | 1024×600 |
| Konposizioa | a-Si TFT-LCD , LCM |
| Distira | |
| CR | 500:1 |
| Koloreak | 262K/16.7M |
| Atzeko argia | WLED |
| Interfazea | Parallel |
| marka | AUO |
| diagonalaren tamaina | 10.1 inch |
| pixel formatua | 1024(RGB)×600 [WSVGA] 117PPI |
| eremu aktiboa | 222.72(H)×125.28(V) mm |
| bezela eremua | 226.43(H)×128.1(V) mm |
| luminantzia | 350 cd/m² (Typ.) |
| ikusi norabidea | - |
| ikuspegi angelua | 70/70/60/60 (Typ.)(CR≥10) |
| euskarria kolorea | 262K/16.7M 45% NTSC |
| pisua | 340g (Max.) |
| fotograma-tasa | 60Hz |
| interfaze mota | Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC |
| energia hornidura | 3.3/10/18/-8V (Typ.)(VDD/AVDD/VGH/VGL) |
| ingurunea | Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
| eredua | G101STN01.5 |
| mota | a-Si TFT-LCD , LCM |
| konfigurazioa | RGB Vertical Stripe |
| eskema dim. | 235(H)×143(V) ×5.5(D) mm |
| tratamendua | Antiglare, Hard coating (3H) |
| kontraste-erlazioa | 500:1 (Typ.) (TM) |
| erantzun denbora | 7/9 (Typ.)(Tr/Td) |
| funtzionamendu modua | TN, Normally White, Transmissive |
| argi iturria | WLED , 15K hours , W/O Driver |
| entzat diseinatua | Industrial |
| ukipen-panela | Without |
