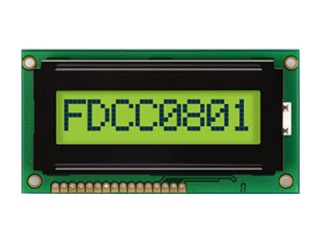

| PartZenbakia | FC0801A01-FHYYBW-51LR |
| Marka | Fordata |
| Tamaina | 2.3 |
| Aplikazio | Instruments & Me |
| Ebazpena | 8×13 |
| Konposizioa | STN-LCD, LCM |
| Distira | |
| CR | 10:1 |
| Koloreak | Monochrome |
| Atzeko argia | YG-LED |
| Interfazea | 8-bit |
| panel marka | Fordata |
| panel eredua | FC0801A01-FHYYBW-51LR |
| panelaren tamaina | 2.3" |
| panel mota | STN-LCD, LCM |
| bistaratzeko formatua | 8 characters × 1 lines, 3PPI |
| letra-tipoaren formatua | 5×8 dots |
| karakterearen tamaina | 6.45×10.75(W×H) mm |
| pertsonaien zelaia | 7.15×10.75(W×H) mm |
| bistaratzeko eremua | 56.5(W)×10.75(H) mm |
| bezela irekidura | 61.0(W)×15.8(H) mm |
| eskema tamaina | 84(W)×44(H) ×13.5(D) mm |
| azalera | - |
| distira | - |
| kontraste-erlazioa | 10:1 (Typ.) (TM) |
| ikuspegi angelua | - |
| bistaratzeko modua | STN, Yellow/Green (Positive), Transflective |
| ikuspegirik onena | 6 o'clock |
| erantzun denbora | 150/150 (Typ.)(Tr/Tf) |
| bistaratzeko koloreak | Monochrome |
| lanpara mota | YG-LED , 20K hours , Without Driver |
| maiztasuna | - |
| pantaila taktila | Without |
| panelaren pisua | - |
| aplikazio | Instruments & Meters |
| seinale interfazea | 8-bit parallel , 16 pins Pad |
| sarrerako tentsioa | 5.0V (Typ.) |
| ingurunea | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
