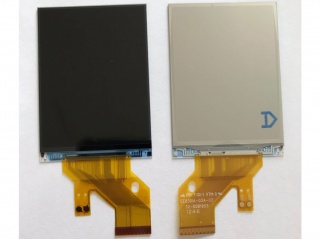

| PartZenbakia | EE030IA-03A |
| Marka | Chimei Innolux |
| Tamaina | 3.0 |
| Aplikazio | Digital Still Camera |
| Ebazpena | 640×480 |
| Konposizioa | CELL , a-Si TFT-LC |
| Distira | |
| CR | 800:1 |
| Koloreak | 16.7M |
| Atzeko argia | No |
| Interfazea | YUV |
| fabrikatzailea | Chimei Innolux |
| pantailaren tamaina | 3.0 inch |
| pixel-zenbakia | 640×480(RGB) (VGA) 270PPI |
| eremu aktiboa (mm) | 60 × 45 (H×V) |
| bezela eremua (mm) | - |
| luminantzia | 0 cd/m² |
| ikuspegi angelua | 85/85/85/85 (Typ.)(CR≥10) |
| ikuspegi ona | Symmetry |
| beira lodiera | 0.25+0.25 mm |
| kolore-sakonera | 16.7M 60% NTSC |
| masa | 5.89g (Typ.) |
| freskatze tasa | 60Hz |
| seinale mota | YUV (16-bit) , 51 pins FPC |
| tentsio-hornidura | 1.8/3.1V (VDDIO/VDD) |
| gehienez. balorazioak | Storage Temp.: -30 ~ 80 °C Operating Temp.: -10 ~ 70 °C |
| ereduaren izena | EE030IA-03A |
| pantaila mota | CELL , a-Si TFT-LCD |
| antolamendua | RGB Horizontal Stripe |
| eskema (mm) | 69 × 49 × 0.8 (H×V×D) |
| tratamendua | Hard coating |
| kontraste-erlazioa | 800 : 1 (Typ.) (TM) |
| erantzuna | 35 (Typ.)(Tr+Td) ms |
| lan egiteko modua | IPS, Normally Black, Transmissive |
| transmisibitatea | 4.5% (Typ.)(with Polarizer) |
| atzeko argia | No B/L , No Driver |
| erabiltzen | Digital Still Camera Digital Video Camera |
| pantaila taktila | Without |
