| PartZenbakia | COM70H7M44UTC |
| Marka | Ortustech |
| Tamaina | 7.0 |
| Aplikazio | Industrial Outdoor H |
| Ebazpena | 800×480 |
| Konposizioa | LCM , a-Si TFT-LCD |
| Distira | |
| CR | 900:1 |
| Koloreak | 262K/16.7M |
| Atzeko argia | 7S2P |
| Interfazea | LVDS |
| fabrikatzailea | Ortustech |
| ereduaren izena | COM70H7M44UTC |
| pantailaren tamaina | 7.0 inch |
| pantaila mota | LCM , a-Si TFT-LCD |
| pixel-zenbakia | 800(RGB)×480 (WVGA) 133PPI |
| antolamendua | RGB Vertical Stripe |

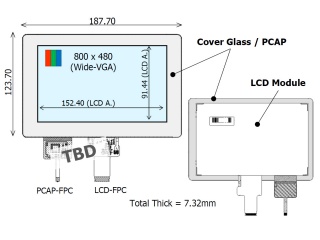

| eremu aktiboa (mm) | 152.4 × 91.44 (H×V) |
| eskema (mm) | 187.7 × 123.7 (H×V×D) |
| bezela eremua (mm) | - |
| tratamendua | Hard coating (3H) |
| luminantzia | 900 cd/m² (Typ.) |
| kontraste-erlazioa | 900 : 1 (Typ.) (TM) |
| ikuspegi angelua | 80/80/80/80 (Min.)(CR≥10) |
| erantzuna | 50 (Typ.)(Tr+Tf) ms |
| ikuspegi ona | Symmetry |
| lan egiteko modua | VA, Normally Black, Transflective |
| kolore-sakonera | 262K/16.7M 50% NTSC |
| atzeko argia | 7S2P WLED , 50K hours , No Driver |
| masa | TBD |
| erabiltzen | Industrial Outdoor High Brightness |
| freskatze tasa | 60Hz |
| pantaila taktila | PCAP |
| seinale mota | LVDS (1 ch, 6/8-bit) , 30 pins FPC |
| tentsio-hornidura | 3.3V (Typ.) |
| gehienez. balorazioak | Storage Temp.: -40 ~ 85 °C Operating Temp.: -30 ~ 80 °C ; Vibration Level: 6.8G (66.64 m/s²) |
