| PartZenbakia | COM121T9M14CSS |
| Marka | Ortustech |
| Tamaina | 12.1 |
| Aplikazio | Industrial |
| Ebazpena | 800×600 |
| Konposizioa | a-Si TFT-LCD, LCM |
| Distira | |
| CR | 1000:1 |
| Koloreak | 262K/16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| marka | Ortustech |
| eredua | COM121T9M14CSS |
| diagonalaren tamaina | 12.1 inch |
| mota | a-Si TFT-LCD, LCM |
| pixel formatua | 800(RGB)×600 [SVGA] 82PPI |
| konfigurazioa | RGB Vertical Stripe |

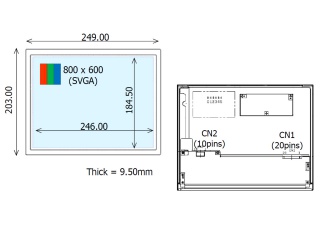

| eremu aktiboa | 246(H)×184.5(V) mm |
| eskema dim. | 260.5(H)×203(V) ×10(D) mm |
| luminantzia | 600 cd/m² (Typ.) |
| kontraste-erlazioa | 1000:1 (Typ.) (TM) |
| ikusi norabidea | Symmetry |
| erantzun denbora | 40 (Max.)(Tr+Td) |
| ikuspegi angelua | 88/88/88/88 (Typ.)(CR≥10) |
| funtzionamendu modua | FFS, Normally Black, Transmissive |
| euskarria kolorea | 262K/16.7M 48% NTSC |
| argi iturria | WLED , 70K hours , With LED Driver |
| pisua | 500g (Typ.) |
| entzat diseinatua | Industrial |
| fotograma-tasa | 60Hz |
| ukipen-panela | Without |
| interfaze mota | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| energia hornidura | 3.3V (Typ.) |
| ingurunea | Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
