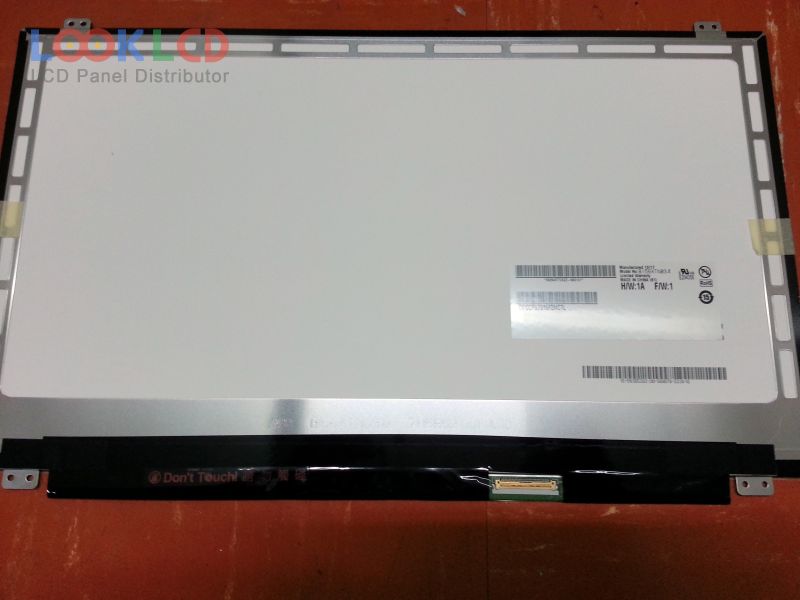

| PartZenbakia | B156XTN03.2 |
| Marka | AUO |
| Tamaina | 15.6 |
| Aplikazio | NBPC |
| Ebazpena | 1366×768 |
| Konposizioa | LCM |
| Distira | 200 |
| CR | 500:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | AUO |
| panel eredua | B156XTN03.2 1 Compatible model |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 15.6 inch |
| ebazpena | 1366(RGB)×768 , WXGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 344.232×193.536 mm |
| eskema | 359.5×223.8×3.2 mm |
| forma estiloa | Slim (PCBA Flat, Depth ≤3.2mm) |
| azalera | Glare (Haze 0%), Hard coating (3H) |
| distira | 200 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193145% |
| erantzun denbora | 2/6 (Typ.)(Tr/Td) |
| ikuspegi angelua | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | WLEDEmbedded (LED Driver) |
| seinale interfazea | LVDS (1 ch, 6-bit), 40 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | NBPC |
| B156XTN02.2 | AUO | 15.6 | 1366×768 |
| B156XTN02.4 | AUO | 15.6 | 1366×768 |
| B156XTN03.1 | AUO | 15.6 | 1366×768 |
| B156XTN04.5 | AUO | 15.6 | 1366×768 |
| B156XTT01.0 | AUO | 15.6 | 1366×768 |
| B156XTT01.1 | AUO | 15.6 | 1366×768 |
| B156XW01 V2 | AUO | 15.6 | 1366×768 |
| B156XW02 V2 HW4A | AUO | 15.6 | 1366×768 |
| B156XW03 V1 | AUO | 15.6 | 1366×768 |
| B156XW04 V0 | AUO | 15.6 | 1366×768 |
| B154PW01 V0 | AUO | 15.4 | 1440×900 |
| B156HAN01.2 | AUO | 15.6 | 1920×1080 |
| B156XW03 V0 | AUO | 15.6 | 1366×768 |
| LP133WQ1-SJA1 | LG Display | 13.3 | 2560×1600 |
| LP133WX2-TLG1 | LG Display | 13.3 | 1280×800 |
| LP154WT1-SJA1 | LG Display | 15.4 | 2880×1800 |
| LTN140AT07-306 | Samsung | 14.0 | 1366×768 |
| N150P2-L06 | IDTech | 15.0 | 1400×1050 |
| N150X3-L09 | Innolux | 15.0 | 1024×768 |
| NL10276BC30-24D | NLT | 15.0 | 1024×768 |
