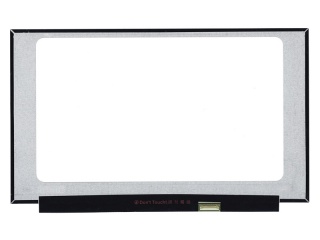

| PartZenbakia | B156HAN02.8 |
| Marka | AUO |
| Tamaina | 15.6 |
| Aplikazio | Laptop |
| Ebazpena | 1920×1080 |
| Konposizioa | LCM , a-Si TFT-LCD |
| Distira | |
| CR | 800:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | eDP |
| fabrikatzailea | AUO |
| pantailaren tamaina | 15.6 inch |
| pixel-zenbakia | 1920(RGB)×1080 (FHD) 141PPI |
| eremu aktiboa (mm) | 344.16 × 193.59 (H×V) |
| bezela eremua (mm) | - |
| luminantzia | 250 cd/m² (Typ.) |
| ikuspegi angelua | 85/85/85/85 (Typ.)(CR≥10) |
| ikuspegi ona | Symmetry |
| kolore-sakonera | 262K 46% NTSC |
| eskema forma | Slim (PCBA Flat, T≤3.2mm) |
| freskatze tasa | 60Hz |
| seinale mota | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| tentsio-hornidura | 3.3V (Typ.) |
| gehienez. balorazioak | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| ereduaren izena | B156HAN02.8 (AUO28ED) |
| pantaila mota | LCM , a-Si TFT-LCD |
| antolamendua | RGB Vertical Stripe |
| eskema (mm) | 350.66 × 216.15 × 3.2 (H×V×D) |
| tratamendua | Antiglare |
| kontraste-erlazioa | 800 : 1 (Typ.) (TM) |
| erantzuna | 25 (Typ.)(Tr+Td) ms |
| lan egiteko modua | AHVA, Normally Black, Transmissive |
| atzeko argia | WLED , 15K hours , With LED Driver |
| erabiltzen | Laptop |
| pantaila taktila | Without |
