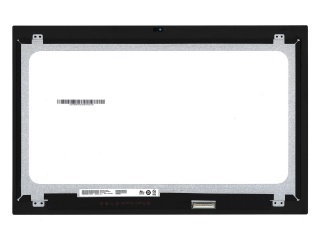

| PartZenbakia | B156HAB02.0 |
| Marka | AUO |
| Tamaina | 15.6 |
| Aplikazio | Laptop |
| Ebazpena | 1920×1080 |
| Konposizioa | a-Si TFT-LCD, Assemb |
| Distira | |
| CR | 800:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | eDP |
| panel marka | AUO |
| panel eredua | B156HAB02.0 |
| panelaren tamaina | 15.6" |
| panel mota | a-Si TFT-LCD, Assembly |
| ebazpena | 1920(RGB)×1080, FHD, 141PPI |
| pixel formatua | RGB Vertical Stripe |
| bistaratzeko eremua | 344.16(W)×193.59(H) mm |
| bezela irekidura | - |
| distira | - |
| kontraste-erlazioa | 800:1 (Typ.) (TM) |
| ikuspegi angelua | 85/85/85/85 (Typ.)(CR≥10) |
| bistaratzeko modua | - |
| ikuspegirik onena | Symmetry |
| erantzun denbora | 25 (Typ.)(Tr+Td) |
| bistaratzeko koloreak | 262K |
| lanpara mota | WLED , 15K hours , With LED Driver |
| maiztasuna | 60Hz |
| pantaila taktila | On-Cell Touch |
| forma estiloa | - |
| aplikazio | Laptop |
| seinale interfazea | eDP (2 Lanes) Connector |
| sarrerako tentsioa | 3.3V (Typ.) |
| ingurunea | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| B156HAT01.0 | AUO | 15.6 | 1920×1080 |
| B156HB01 V0 | AUO | 15.6 | 1920×1080 |
| B156HTN01.1 | AUO | 15.6 | 1920×1080 |
| B156HTN03.3 | AUO | 15.6 | 1920×1080 |
| B156HW01 V1 | AUO | 15.6 | 1920×1080 |
| B156HW01 V3 | AUO | 15.6 | 1920×1080 |
| B156HW01 V4 | AUO | 15.6 | 1920×1080 |
| B156HW01 V7 | AUO | 15.6 | 1920×1080 |
| B156HW02 V1 | AUO | 15.6 | 1920×1080 |
| B156HW03 V0 | AUO | 15.6 | 1920×1080 |
