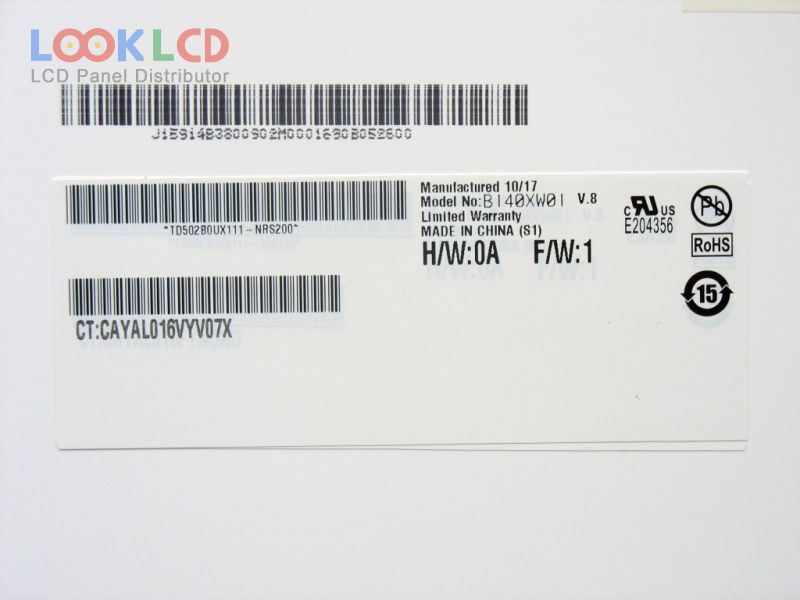

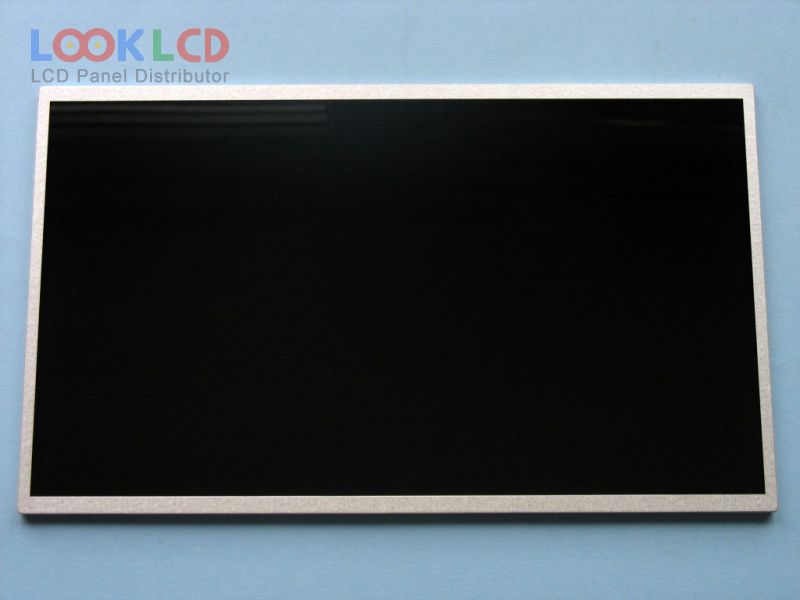

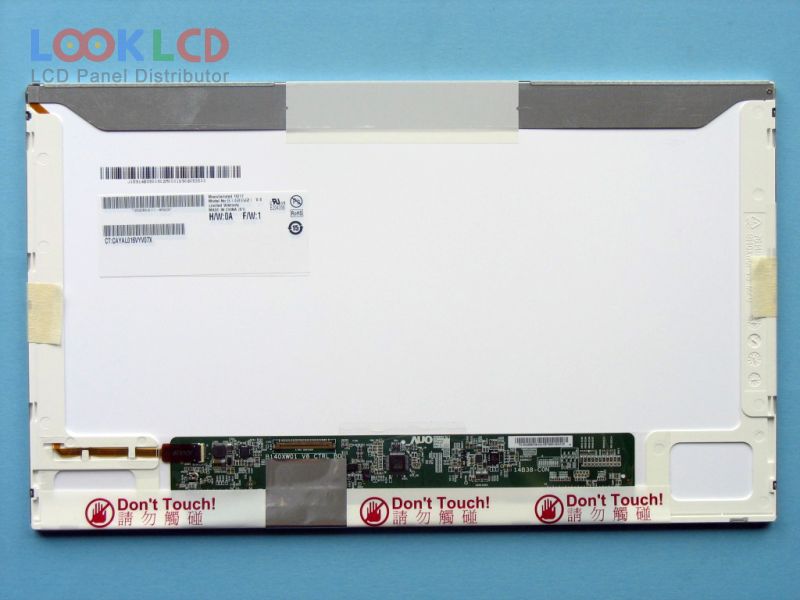

| PartZenbakia | B140XW01 V8 |
| Marka | AUO |
| Tamaina | 14.0 |
| Aplikazio | NBPC |
| Ebazpena | 1366×768 |
| Konposizioa | LCM |
| Distira | 200 |
| CR | 500:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | AUO |
| panel eredua | B140XW01 V8 2 Compatible model |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 14.0 inch |
| ebazpena | 1366(RGB)×768 , WXGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 309.399×173.952 mm |
| eskema | 323.5×192×5.2 mm |
| forma estiloa | Wedge (PCBA Bent, Depth ≥5.2mm) |
| azalera | Glare (Haze 0%), Hard coating (3H) |
| distira | 200 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193145% |
| erantzun denbora | 8 (Typ.)(Tr+Td) |
| ikuspegi angelua | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | WLEDEmbedded (LED Driver) |
| seinale interfazea | LVDS (1 ch, 6-bit), 40 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | NBPC |
