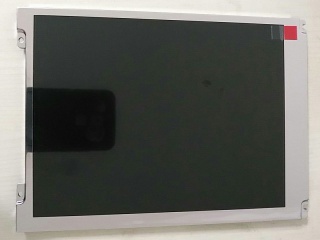

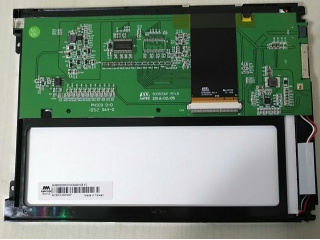

| PartZenbakia | AM-800600MGTMQW-00H |
| Marka | AMPIRE |
| Tamaina | 8.4 |
| Aplikazio | Industrial |
| Ebazpena | 800×600 |
| Konposizioa | LCM, a-Si TFT-LCD |
| Distira | |
| CR | 600:1 |
| Koloreak | 16.7M |
| Atzeko argia | 12S4P |
| Interfazea | LVDS |
| fabrikatzailea | AMPIRE |
| ereduaren izena | AM-800600MGTMQW-00H |
| pantailaren tamaina | 8.4 inch |
| pantaila mota | LCM, a-Si TFT-LCD |
| pixel-zenbakia | 800(RGB)×600 (SVGA) 119PPI |
| antolamendua | RGB Vertical Stripe |
| eremu aktiboa (mm) | 170.4 × 127.8 (H×V) |
| eskema (mm) | 203 × 145.5 × 10.9 (H×V×D) |
| bezela eremua (mm) | 174.15 × 131.2 (H×V) |
| tratamendua | - |
| luminantzia | 350 cd/m² (Typ.) |
| kontraste-erlazioa | 600 : 1 (Typ.) (TM) |
| ikuspegi angelua | 75/75/60/70 (Typ.)(CR≥10) |
| erantzuna | 8 (Typ.)(Tr+Td) ms |
| ikuspegi ona | - |
| lan egiteko modua | TN, Normally White, Transmissive |
| kolore-sakonera | 16.7M |
| atzeko argia | 12S4P WLED , 50K hours , With LED Driver |
| masa | TBD |
| erabiltzen | Industrial |
| freskatze tasa | 60Hz |
| pantaila taktila | Without |
| seinale mota | LVDS (1 ch, 8-bit) , Connector 20 pins |
| tentsio-hornidura | 3.3V (Typ.) |
| gehienez. balorazioak | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| AM-800600M3TNQW-00H | AMPIRE | 8.4 | 800×600 |
| AM-800600M3TNQW-01H-F | AMPIRE | 8.4 | 800×600 |
| G084SN05 V3 | AUO | 8.4 | 800×600 |
| LB084S02-TD01 | LG Display | 8.4 | 800×600 |
| LM084SS1T01 | SHARP | 8.4 | 800×600 |
| LQ084S3LG02 | SHARP | 8.4 | 800×600 |
| LQ84S02 01A | SHARP | 8.4 | 800×600 |
| NL8060BC21-03 | NLT | 8.4 | 800×600 |
| NL8060BC21-11 | NLT | 8.4 | 800×600 |
| TM084SDHG02 | Tianma | 8.4 | 800×600 |
